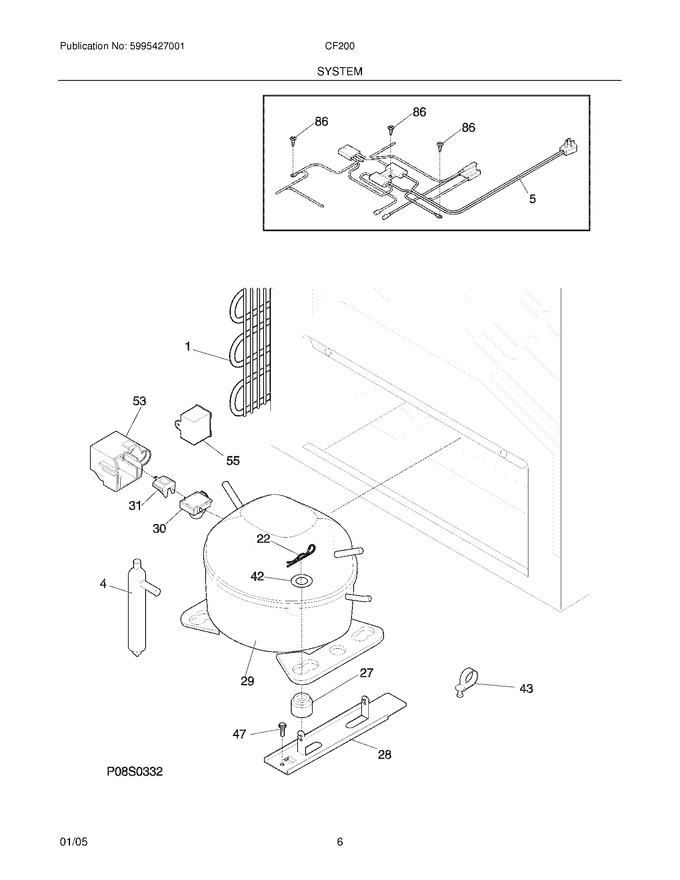

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
22	216056400		Clip,compressor Mtg ,spring		Appelez-nous	-
27	218513300		Grommet-compr Mtg,(4)				$ 42.53
28	5303212615		Support, Compressor		Appelez-nous	-
42	216232700		Washer,flat ,1``od X 0.531``id		Appelez-nous	-
43	5303212614		Clip,harness Mount				$ 2.88
47	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping   (Replaces: 216629600)				$ 13.01
53	216894500		Cover-terminal		Appelez-nous	-
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
29No.	216966900		Compressor,assy		Appelez-nous	-
F1	5303280307		Condenser				$ 640.71
F30	216894200		Starter,relay			Immediately	$ 35.44
F31	216100126		Overload Protector				$ 85.30
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 31.67
F5	216906000		Harness-main		Appelez-nous	-
F55	297286810		Capacitor-run   (Replaces: 216894400)				$ 35.44
NI	216533500		Wire,ground		Appelez-nous	-
NI	5303298960		Spacer-tube,0.237`` Id		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
