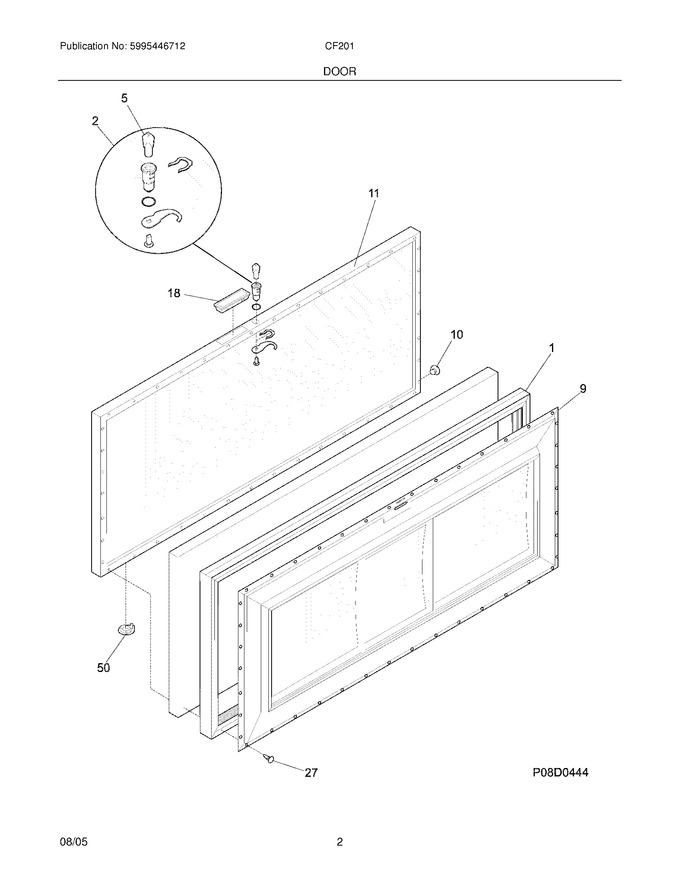

03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481401		Gasket,lid Seal ,white				$ 165.32
9	216059608		Panel-inner Door,white ,frzr		Appelez-nous	-
10	216923001		Plug Button,1/4``,white				$ 9.87
11	216130101		Panel-outer Door,white		Appelez-nous	-
18	297034202		Handle,recessed ,chrome ,w/gasket				$ 39.43
27	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
50	216855400		Cover,hinge,w/tape,,(2)		Appelez-nous	-
F2	5303925107		Lock Assy		Appelez-nous	-
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
NI	216858000		Screw,thno.8-18x.500ab,no.10		Appelez-nous	-
NI	5303212828		Clip,panel Mtg				$ 16.63
NI	5300114366		Washer-sealing		Appelez-nous	-
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
