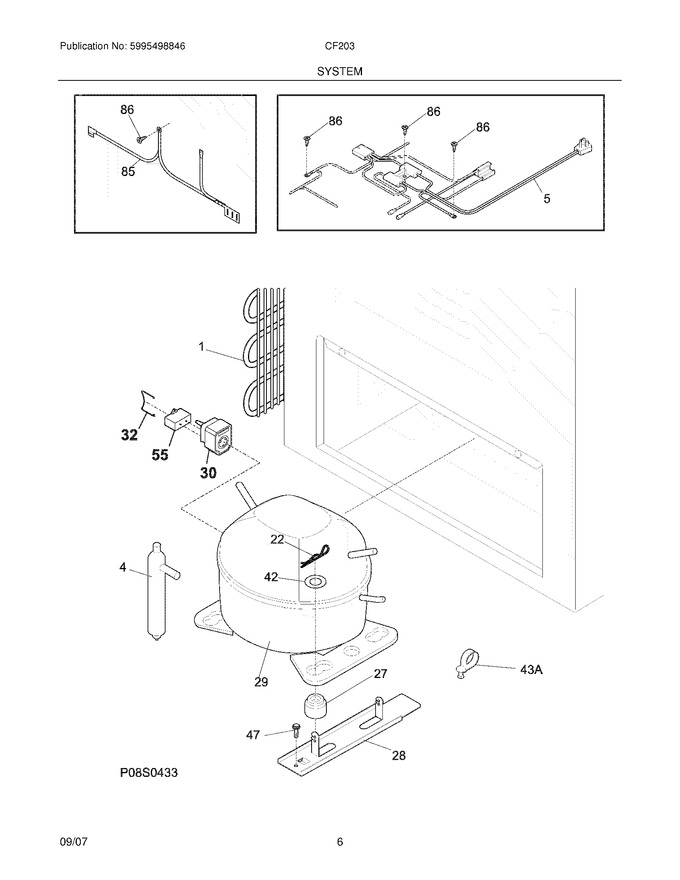

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	216987500		Drier-filter		Appelez-nous	-
22	242037701		Clip-compressor Mtg   (Replaces: 216056401)				$ 2.84
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
28	5303212615		Support, Compressor		Appelez-nous	-
32	241544101		Clamp,elec Cont Mtg ,compressor ,bale Wire		Appelez-nous	-
42	216232700		Washer,flat ,1``od X 0.531``id		Appelez-nous	-
47	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping   (Replaces: 216629600)				$ 13.01
55	297286803		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909915)			Immediately	$ 28.77
85	216533500		Wire,ground		Appelez-nous	-
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
43A	5303212614		Clip,harness Mount				$ 2.88
F1	5303280307		Condenser				$ 640.71
F29	5304475102		Compressor,w/o Electricals   (Replaces: 297048200)			Immediately	$ 660.56
F30	297048300		Controller				$ 82.51
F5	216987200		Harness-main		Appelez-nous	-
NI	297102800		Spacer-tube		Appelez-nous	-
