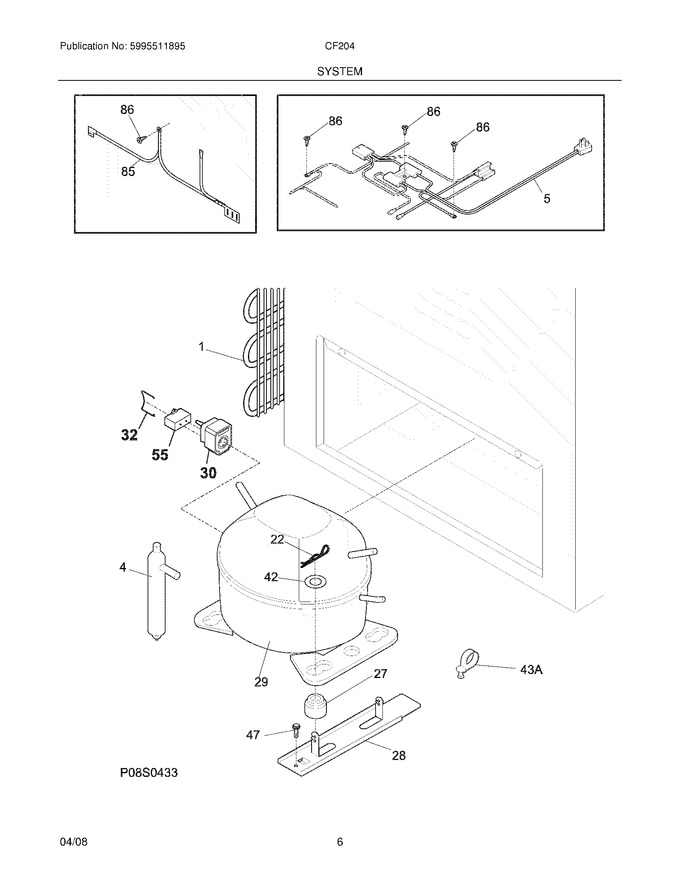

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	216987500		Drier-filter		Appelez-nous	-
22	242037701		Clip-compressor Mtg   (Replaces: 216056401)				$ 2.84
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
28	5304464023		Support,compressor		Appelez-nous	-
30	216954213		Controller				$ 44.04
32	241544101		Clamp,elec Cont Mtg ,compressor ,bale Wire		Appelez-nous	-
42	216232701		Washer,flat				$ 2.10
47	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping				$ 13.01
85	216533500		Wire,ground		Appelez-nous	-
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
43A	5303212614		Clip,harness Mount				$ 2.88
F1	5303280307		Condenser				$ 640.71
F29	297201300		Compressor,w/o Electricals		Appelez-nous	-
F5	216987200		Harness-main		Appelez-nous	-
F55	218909912		Capacitor-run,220 Vac ,12 Microfarad			Immediately	$ 74.75
NI	297102800		Spacer-tube		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
