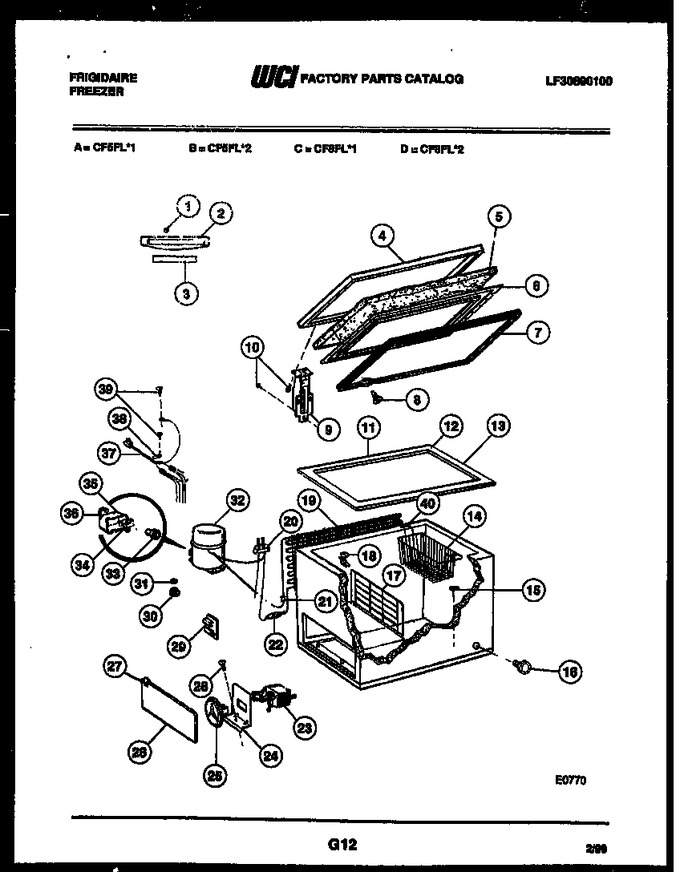

02 - Chest Freezer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 09948647 | Fastener |
|
- | |||||
| 2 | 09948646 | Handle |
|
- | |||||
| 3 | 08013602 | Insert |
|
- | |||||
| 4 | 3018264 | Lid Panel |
|
- | |||||
| 5 | 08016778 | Insulation |
|
- | |||||
| 6 | 08016331 | Inner Panel |
|
- | |||||
| 7 | 08037990 | Gasket Lid |
|
- | |||||
| 8 | 3091422 | Clip (20) |
|
- | |||||
| 9 | 09948660 | Hinge |
|
- | |||||
| 10 | 09950602 | Screw |
|
- | |||||
| 11 | 3018319 | Breaker-front And Rear |
|
- | |||||
| 12 | 3018271 | Breaker-corner |
|
- | |||||
| 13 | 3018274 | Breaker-ends |
|
- | |||||
| 14 | 3018277 | Basket |
|
- | |||||
| 15 | 06593887 | Plug |
|
- | |||||
| 16 | 06599932 | Plug Drain |
|
- | |||||
| 19 | 5300120779 | Condenser (not Original Equipment. Service Replacement |
|
- | |||||
| 21 | 05878546 | Spacer, Condenser |
|
- | |||||
| 22 | 08000127 | Drier |
|
- | |||||
| 23 | 08013601 | Control Cold |
|
- | |||||
| 24 | 09948640 | Bracket |
|
- | |||||
| 25 | 08011881 | Knob |
|
- | |||||
| 26 | 08016336 | Panel |
|
- | |||||
| 27 | 08017037 | Retainer |
|
$ 3.26 | |||||
| 28 | 07626998 | Screw |
|
- | |||||
| 29 | 06599553 | Clip, Wires |
|
- | |||||
| 30 | 09948644 | Grommet (4) |
|
- | |||||
| 31 | 09950343 | Clip (3) |
|
- | |||||
| 32 | 5300186041 | Compressor |
|
- | |||||
| 33 | 3205695 | Overload |
|
- | |||||
| 34 | 3205694 | Relay |
|
- | |||||
| 35 | 3205696 | Cover |
|
- | |||||
| 36 | 3205697 | Clamp |
|
- | |||||
| 37 | 3018261 | Wiring Harness |
|
- | |||||
| 38 | 09948780 | Clamp |
|
- | |||||
| 39 | 08037851 | Screw |
|
$ 3.57 |
