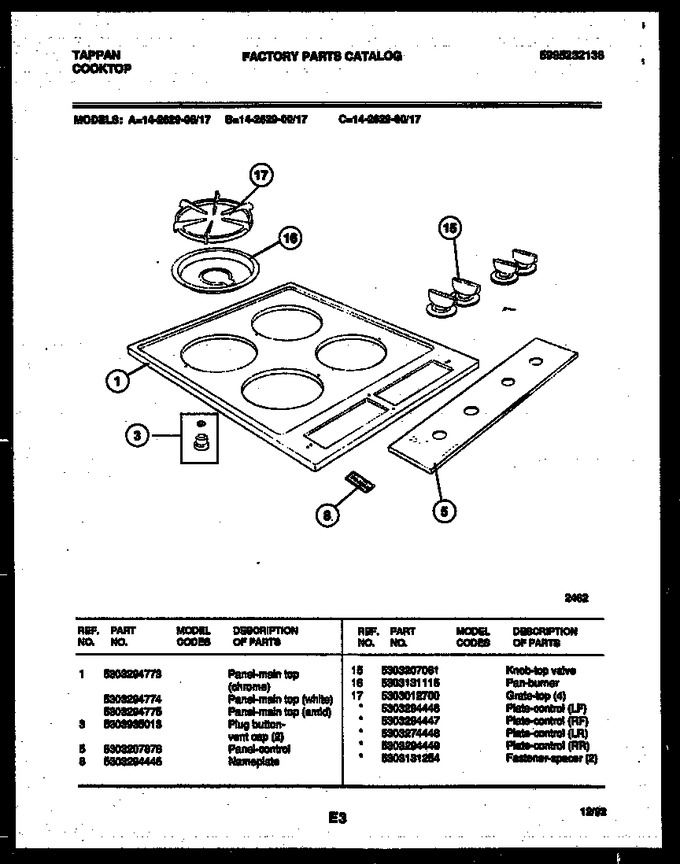

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303294775 | Panel-main Top (amld) |
|
- | |||||
| 1 | 5303294773 | Panel-main Top (chrome) |
|
- | |||||
| 1 | 5303294774 | Panel-main Top (white) |
|
- | |||||
| 3 | 5303935013 | Plug-button-vent Cap (2) |
|
- | |||||
| 5 | 5303207876 | Panel-control |
|
- | |||||
| 8 | 5303294445 | Nameplate |
|
- | |||||
| 15 | 5303207061 | Knob-top Valve |
|
- | |||||
| 16 | 5303131115 | Pan-burner |
|
$ 15.62 | |||||
| 17 | 5303012700 | Grate - Top (4) |
|
- | |||||
| *82582 | 5303294449 | Plate-control (rr) |
|
- | |||||
| *82582 | 5303294446 | Plate-control (lf) |
|
- | |||||
| *82582 | 5303131254 | Fastener-spacer (2) |
|
- | |||||
| *82582 | 5303294447 | Plate-control (rf) |
|
- | |||||
| *82582 | 5303274448 | Plate-control (lr) |
|
- |
