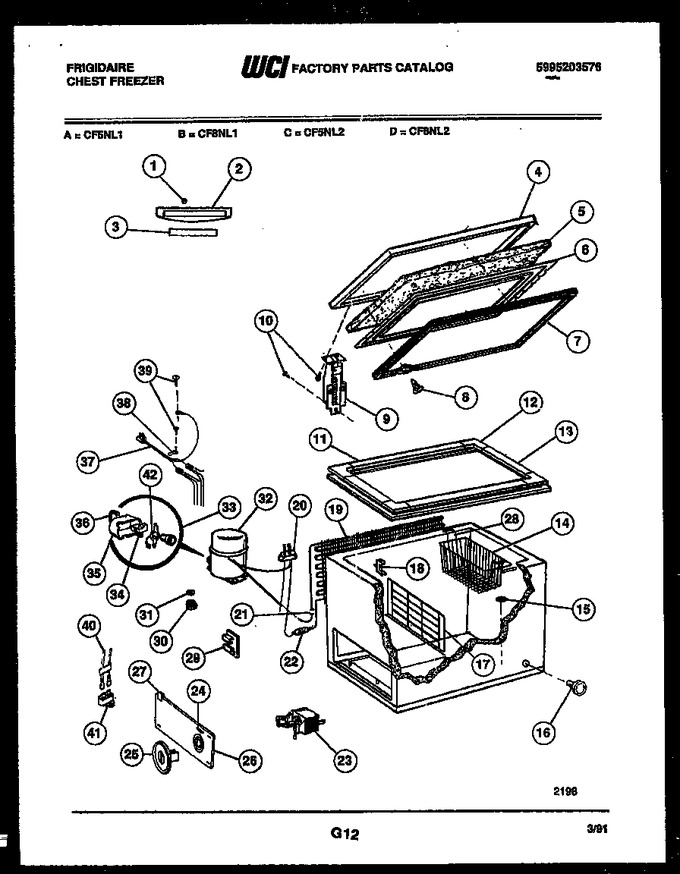

02 - Chest Freezer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5309948647		Grommet-control Tube		Appelez-nous	-
2	5309948646		Handle		Appelez-nous	-
3	5308013602		Insert		Appelez-nous	-
4	3018264		Lid Panel		Appelez-nous	-
5	5303207270		Insulation		Appelez-nous	-
6	08016331		Inner Panel		Appelez-nous	-
7	5308037990		Gasket Lid		Appelez-nous	-
8	5303922007		Clip (20)				$ 70.88
9	5309948660		Hinge		Appelez-nous	-
10	5309950602		Screw				$ 5.30
11	3018323		Breaker-front & Rear		Appelez-nous	-
12	3018272		Breaker-corner		Appelez-nous	-
13	3018275		Breaker-end		Appelez-nous	-
14	5303018276		Basket		Appelez-nous	-
15	06593887		Plug		Appelez-nous	-
16	06599932		Plug Drain		Appelez-nous	-
19	5300120779		Condenser		Appelez-nous	-
20	06599967		Grommet		Appelez-nous	-
21	5305878546		Spacer Condenser				$ 7.23
22	5303305677		Drier   (Replaces: 5308000027)			Immediately	$ 31.67
23	5308013601		Control Cold		Appelez-nous	-
24	5303208663		Plug-indicator		Appelez-nous	-
25	5303208881		Knob Control		Appelez-nous	-
26	5303206882		Panel Access		Appelez-nous	-
27	08017037		Retainer				$ 3.26
28	5308016799		Handle Basket-yellow		Appelez-nous	-
29	5303208622		Clip		Appelez-nous	-
30	5308008778		Grommet (4)		Appelez-nous	-
31	5309950343		Clip (3)		Appelez-nous	-
32	5300186041		Compressor W/ Electricals		Appelez-nous	-
33	5303206885		Overload				$ 119.23
34	5303017753		Relay		Appelez-nous	-
35	5303206815		Cover		Appelez-nous	-
37	08016343		Wiring Harness		Appelez-nous	-
38	5303017718		Clamp		Appelez-nous	-
39	08037851		Screw				$ 3.57
40	3017761		Capacitor		Appelez-nous	-
41	5303206808		Harness Capacitor		Appelez-nous	-
