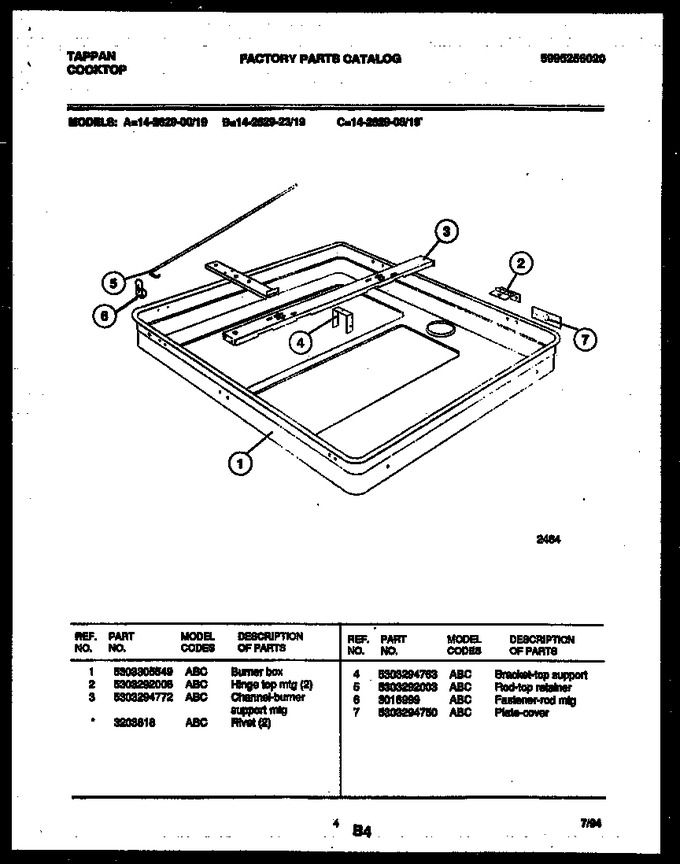

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cooktop Parts
03 - Burner, Manifold And Gas Control
04 - Burner Box Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303305549 | Burner Box |
|
- | |||||
| 2 | 5303292006 | Hinge Top Mtg (2) |
|
- | |||||
| 3 | 5303294772 | Channel-burner Support Mtg |
|
- | |||||
| 4 | 5303294763 | Bracket-top Support |
|
- | |||||
| 5 | 5303292003 | Rod-top Retainer |
|
- | |||||
| 6 | 3016999 | Fastener, Rod Mtg. |
|
- | |||||
| 7 | 5303294750 | Plate-cover |
|
- | |||||
| 3A | 3203618 | Rivet (2) (non-illustrated) |
|
- |
