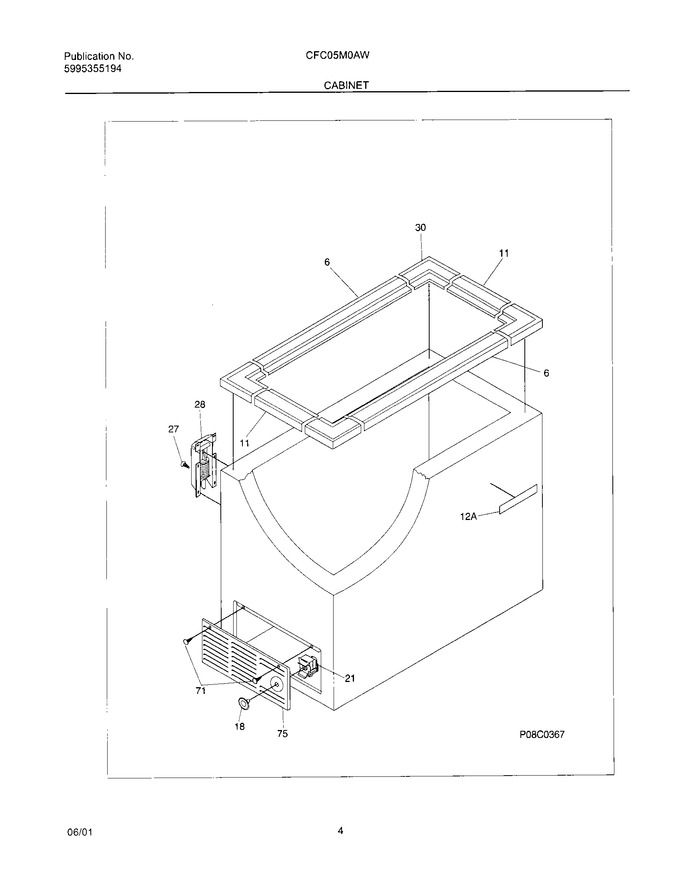

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	216105700		Breaker-hinge\front,white		Appelez-nous	-
11	216105600		Breaker-ends, White		Appelez-nous	-
18	216707200		Knob-control Cold				$ 44.10
27	216337700		Screw,hex Washer Head `10-24 X 0.500		Appelez-nous	-
28	216478800		Hinge Assy		Appelez-nous	-
30	216105500		Breaker-corners,white				$ 46.83
71	5303302714		Screw, 8, 18 X 3/4, (2)		Appelez-nous	-
75	216329402		Panel-access,white		Appelez-nous	-
12A	216373000		Frame-nameplate				$ 4.04
F21	5304496559		Control-temperature   (Replaces: 216787700)			Immediately	$ 44.18
NI	216802800		Owners Guide				$ 21.98
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
