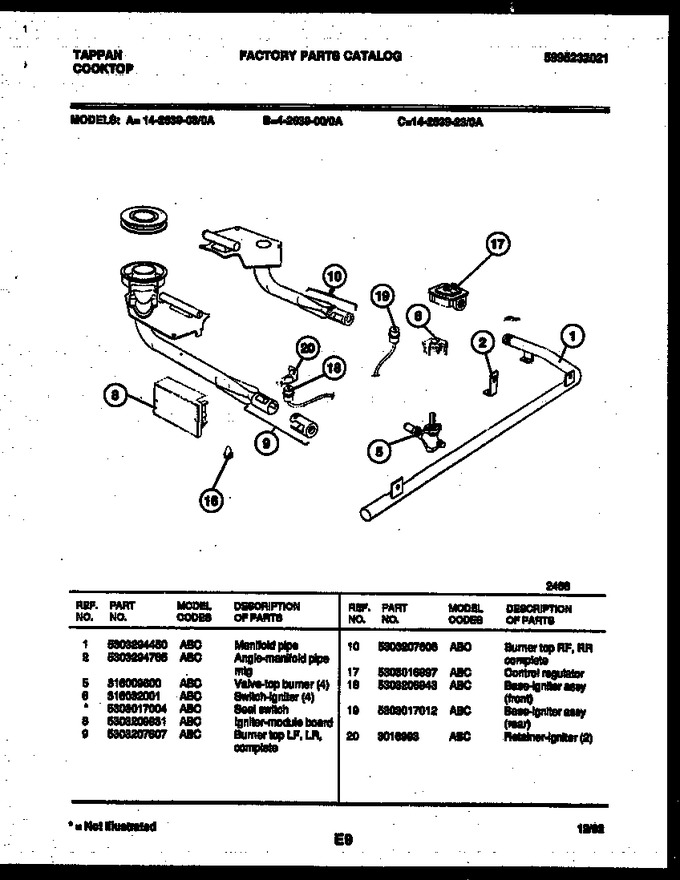

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303294450 | Manifold Pipe |
|
- | |||||
| 2 | 5303294765 | Angle, Manifold Pipe, Mtg |
|
- | |||||
| 5 | 316009600 | Valve-top Burner (4) |
|
- | |||||
| 6 | 316032001 | Switch-igniter, (4) |
|
$ 69.35 | |||||
| 8 | 5303209931 | Igniter-module Board |
|
- | |||||
| 9 | 5303207607 | Burner Top Lf, Lr, Complete |
|
- | |||||
| 10 | 5303207606 | Burner Top Rf, Rr Complete |
|
- | |||||
| 17 | 5303016997 | Control-regulator |
|
- | |||||
| 18 | 5303206943 | Base-igniter Assy (front) |
|
- | |||||
| 19 | 5303017012 | Base-igniter Assy (rear) |
|
- | |||||
| 20 | 3016993 | Retainer-igniter (2) |
|
- | |||||
| 6A | 5303017004 | Seal Switch (non-illustrated) |
|
- |
