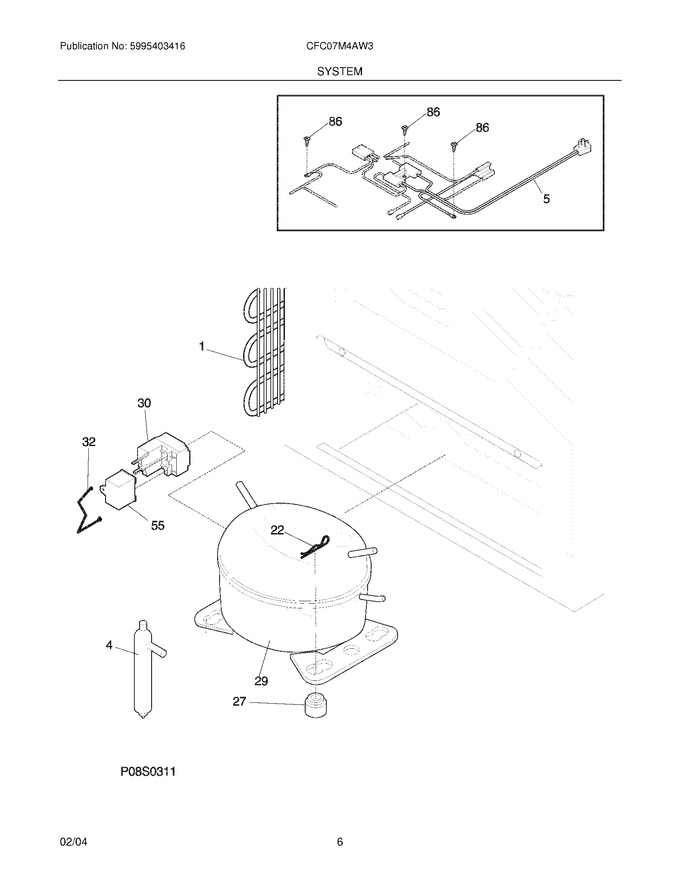

07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 5303305677 | Drier-filter (Replaces: 216634500) |
|
Immediately | $ 31.67 | ||||
| 5 | 216818400 | Harness-main |
|
$ 72.71 | |||||
| 22 | 216056400 | Clip,compressor Mtg ,spring |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 30 | 216649319 | Controller |
|
$ 64.58 | |||||
| 32 | 216694500 | Clip,controller |
|
- | |||||
| 55 | 5304464438 | Capacitor-run,220 Vac ,15 Microfarad (Replaces: 218909913) |
|
Immediately | $ 35.38 | ||||
| 86 | 216707700 | Screw,8-18 X 1/2 |
|
- | |||||
| 29No. | 5304507765 | Compressor,w/o Electricals (Replaces: 216856700) |
|
Immediately | $ 677.23 | ||||
| F1 | 5300120780 | Condenser |
|
- |
