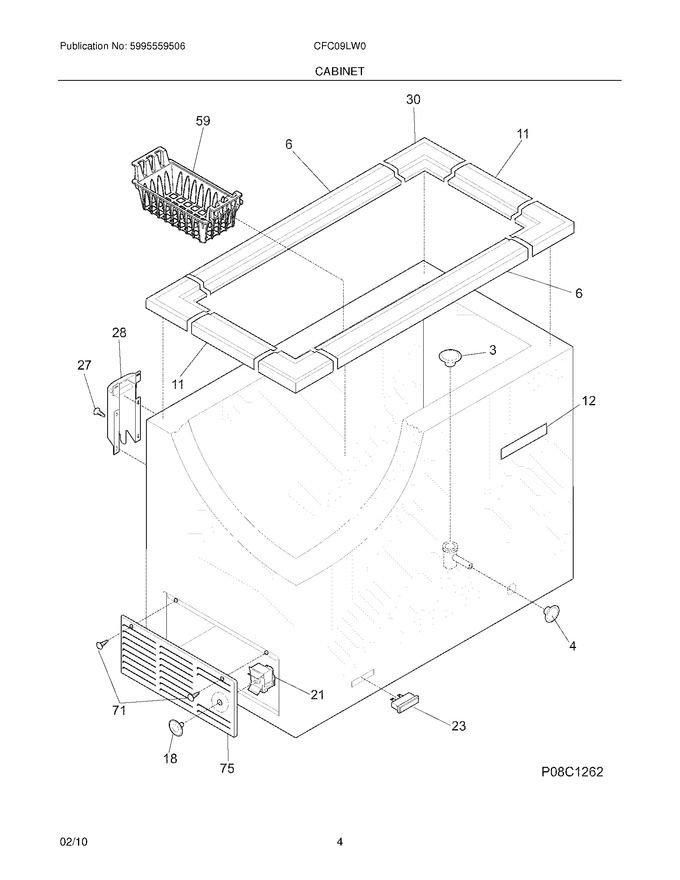

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug-drain,interior			Immediately	$ 17.35
4	297013600		Plug-drain,exterior				$ 9.98
6	216855704		Breaker-hinge Side,white				$ 56.81
11	216855706		Breaker-ends,white		Appelez-nous	-
12	242013601		Label-nameplate		Appelez-nous	-
18	216707200		Knob,temp Control				$ 44.10
23	297181900		Light,signal ,amber				$ 16.96
27	216337701		Screw,hwh ,10-24 X 0.500 ,swage				$ 14.41
28	297313200		Hinge Assy				$ 42.79
30	216105500		Breaker-corners,white				$ 46.83
59	216848200		Basket				$ 53.21
71	5304463819		Screw,ab ,8-18x3/8				$ 1.27
75	216782000		Panel-access,white		Appelez-nous	-
21No.	5304496559		Control-temperature   (Replaces: 216787700)			Immediately	$ 44.18
NI	216794016		Energy Guide		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
