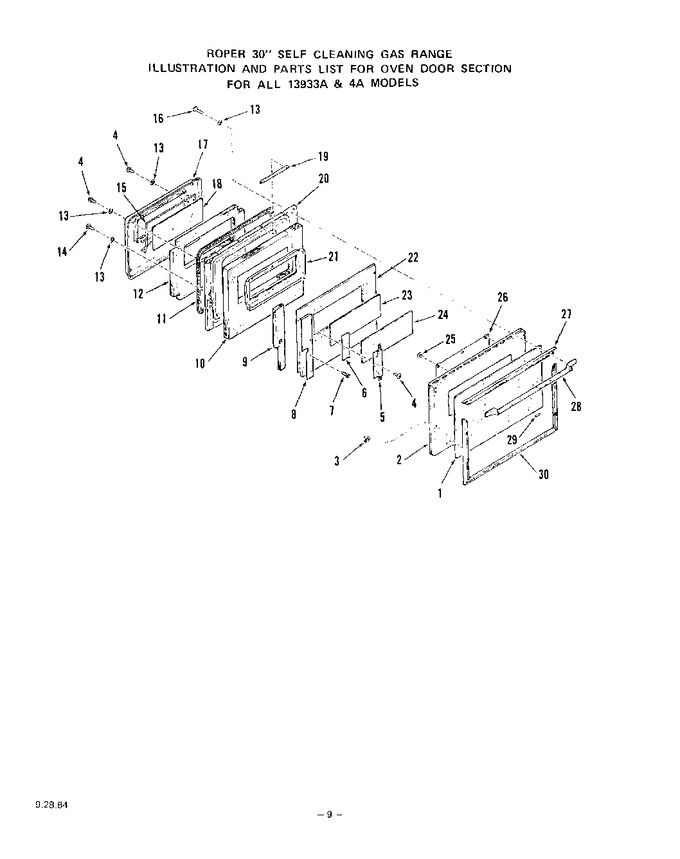

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	319296		Outer Door Glass		Appelez-nous	-
2	320717		Front Panel-oven Door		Appelez-nous	-
3	300007		Fastener (7 Required)		Appelez-nous	-
4	321943		Screw 10abx1``		Appelez-nous	-
5	WP487353		Clamp-oven Door Glass (lt. Or Rt.)   (Replaces: 307842)				$ 6.81
6	310929		Spacer-oven Door Glass (lt. Or Rt.)		Appelez-nous	-
7	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
8	324849		Retainer-side Insulation (left)		Appelez-nous	-
8	324850		Retainer-side Insulation (right)		Appelez-nous	-
9	320720		Side Insulation-lt. Or Rt.		Appelez-nous	-
10	320718		Insulation-oven Door Lining		Appelez-nous	-
11	282441		Gasket-oven Door		Appelez-nous	-
12	321930		Insulation-oven Door Plug		Appelez-nous	-
13	21067		Washer		Appelez-nous	-
14	102376		Screw 10-32 X 1/2``		Appelez-nous	-
15	302935		Seal-fiberglass		Appelez-nous	-
16	303003		Screw 10-24x2-3/8``		Appelez-nous	-
17	320677		Plug-oven Door Lining		Appelez-nous	-
18	312426		Inner Door Glass		Appelez-nous	-
19	310911		Stiffener-oven Door Lining		Appelez-nous	-
20	310912		Lining-oven Door		Appelez-nous	-
21	324853		Retainer-oven Door Glass Insulation		Appelez-nous	-
22	324846		Insulation Retainer		Appelez-nous	-
23	296214		Center Door Glass		Appelez-nous	-
24	308239		Intermediate Door Glass		Appelez-nous	-
25	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
26	314912		Shield-oven Door Lining		Appelez-nous	-
27	319295		Top Frame-oven Door Glass		Appelez-nous	-
28	282093		Handle-oven Door		Appelez-nous	-
29	112370		Cushion (6 Required)		Appelez-nous	-
30	311529		Switch		Appelez-nous	-
30	319292		Frame-oven Door Glass		Appelez-nous	-
30	322552		Main		Appelez-nous	-
