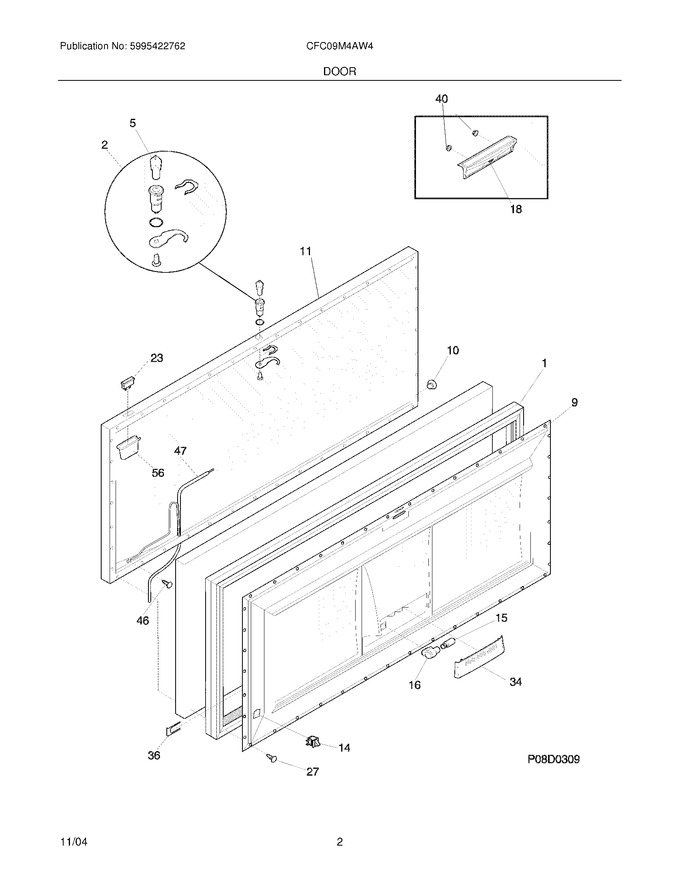

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481001		Gasket-door, White				$ 202.00
2	5303925107		Lock Assy		Appelez-nous	-
9	216829800		Panel-lid				$ 121.38
10	216923001		Plug Button,1/4``,white				$ 9.87
11	216117928		Panel-lid				$ 129.73
14	216822900		Switch,light/lamp ,ramp			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
16	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
18	216205001		Handle, White		Appelez-nous	-
23	5308002706		Light-signal,amber				$ 39.11
27	5303212828		Clip,panel Mtg				$ 16.63
34	5303296969		Shield,lid Lamp		Appelez-nous	-
36	5309948955		Clip-panel				$ 11.53
40	216922700		Fastener,.330 Dia Stud ,handle ,(2)				$ 12.05
46	216707800		Screw,ph ,8-32 X 1/2 ,wiring Harness		Appelez-nous	-
47	216816700		Harness-lid/defrost		Appelez-nous	-
56	216694200		Cap,sig Light Seal		Appelez-nous	-
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
NI	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
