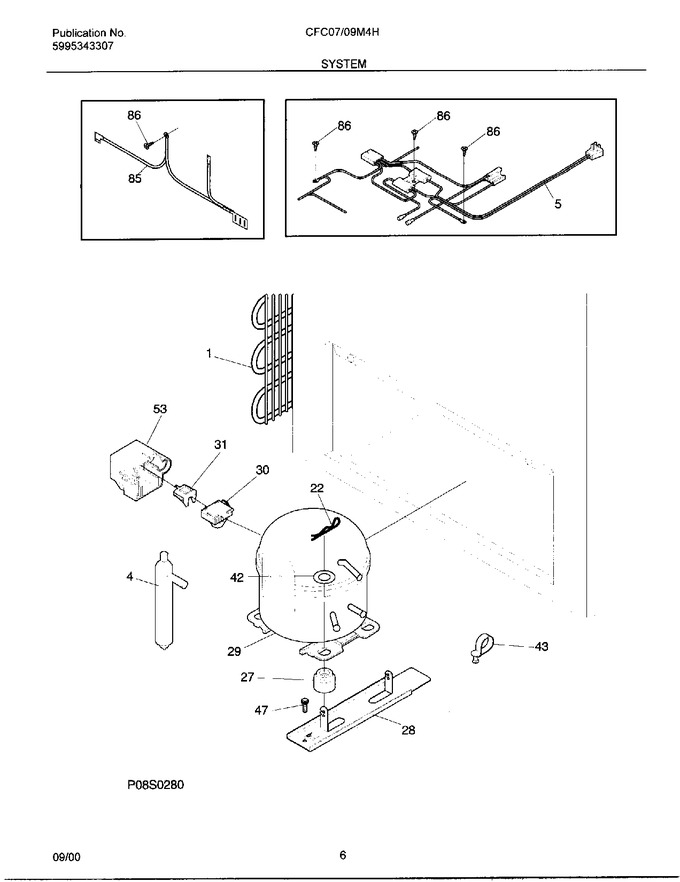

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300120781 | Condenser |
|
- | |||||
| 1 | 5300120780 | Condenser |
|
- | |||||
| 4 | 5303305677 | Drier-filter (Replaces: 216634500) |
|
Immediately | $ 31.67 | ||||
| 5 | 216759900 | Harness-main |
|
- | |||||
| 5 | 216759800 | Harness-main |
|
- | |||||
| 22 | 216056400 | Clip, Spring Mtg |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 28 | 5303212615 | Support, Compressor |
|
- | |||||
| 29 | 5304443412 | Compressor,r134a ,w/ Electricals (Replaces: 216510900) |
|
$ 856.23 | |||||
| 30 | 216511200 | Starter |
|
- | |||||
| 31 | 216100113 | Overload Protector |
|
$ 169.63 | |||||
| 42 | 216232700 | Washer-flat |
|
- | |||||
| 43 | 5303212614 | Clip Harness |
|
$ 2.88 | |||||
| 47 | 08016776 | Screw-comp,ind Hex Wshr Hd,10-32t X 0.500 Supp. |
|
- | |||||
| 53 | 216347800 | Cover, Compressor |
|
- | |||||
| 85 | 216533100 | Wire,ground |
|
- | |||||
| 86 | 216036600 | Screw, Rwhd (gx, Ca), 8, 32 X 1/2 |
|
- | |||||
| F29 | 5304443412 | Compressor W/electricals (Replaces: 5303925442) |
|
$ 856.23 | |||||
| NI | 216478900 | Fastener, Energy Guide |
|
- |
