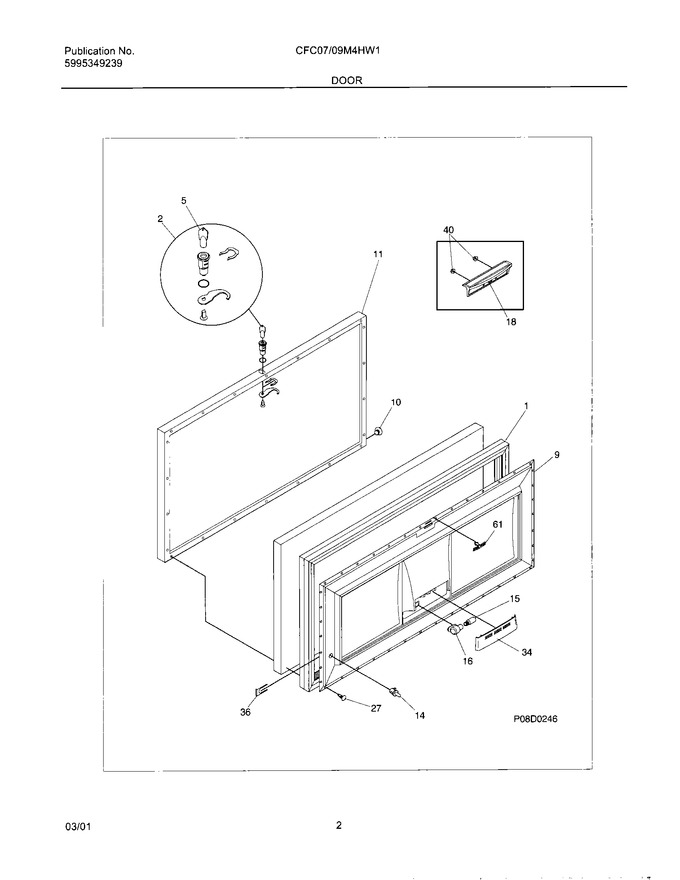

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481001		Gasket-door, White				$ 202.00
2	5303925107		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
9	216688200		Panel-inner Door,frzr		Appelez-nous	-
10	216141101		Plug Button, White				$ 2.57
11	216117923		Panel-lid		Appelez-nous	-
14	297243800		Switch-light Plunger   (Replaces: 216472300)				$ 36.68
15	5304517886		Bulb-light,40w ,130v   (Replaces: 216608600)			Immediately	$ 73.06
16	216684000		Socket-light/lamp		Appelez-nous	-
18	216205001		Handle, White		Appelez-nous	-
27	5303212828		Clip,panel				$ 16.63
34	216160400		Shield-light		Appelez-nous	-
36	5306599968		Plate, Backup, Light Switch		Appelez-nous	-
40	5309948647		Fastener, Handle		Appelez-nous	-
61	5309948955		Clip-panel				$ 11.53
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
