SELECT A DIAGRAM

01 - Cover

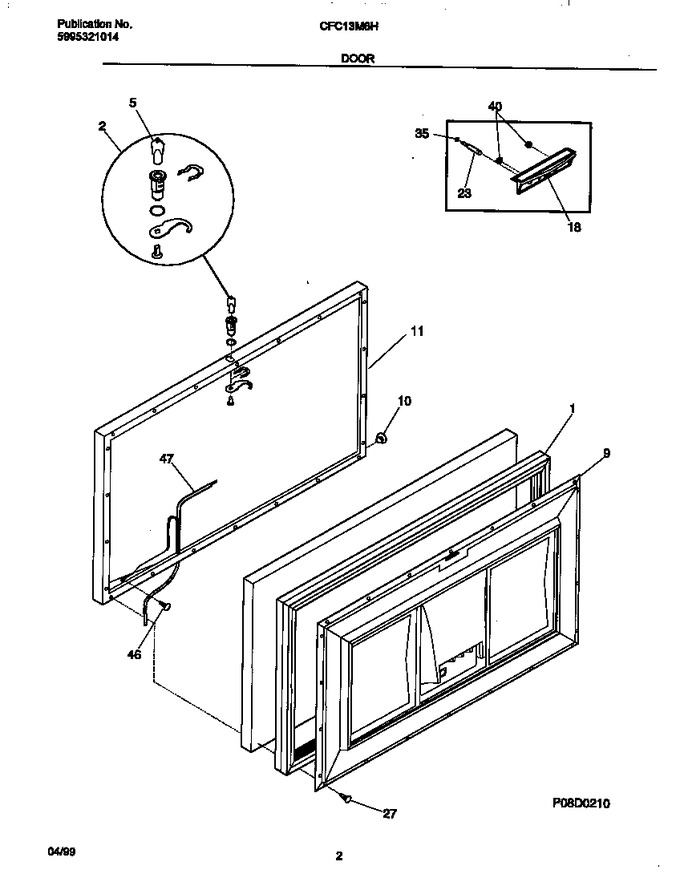

02 - Door


03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481101		Gasket-door, White				$ 224.81
2	5303925107		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
9	216056904		Panel-inner Lid, White		Appelez-nous	-
10	216141101		Plug Button, White				$ 2.57
11	216129803		Panel-outer Door/lid,white		Appelez-nous	-
18	216205004		Handle,white		Appelez-nous	-
23	216212700		Light-signal,amber		Appelez-nous	-
27	5303212828		Clip,panel				$ 16.63
35	5303297015		Washer, Signal Light		Appelez-nous	-
40	5309948647		Fastener, Handle		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
47	216550200		Harness-lid/defrost		Appelez-nous	-
*04001	5303917276		Insulation				$ 330.91

    View Diagram in Separate Window       Print Part List
