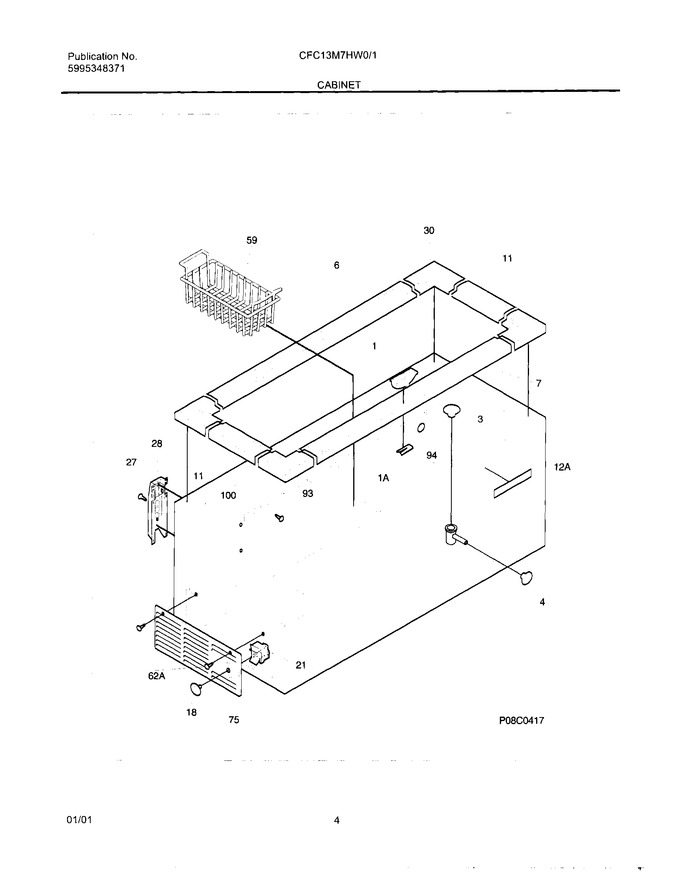

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303208488		Latch, Door		Appelez-nous	-
1	216080800		Support, Lock		Appelez-nous	-
3	216502600		Plug-drain,interior ,interior			Immediately	$ 17.35
4	216073900		Plug-drain,exterior		Appelez-nous	-
6	216110900		Breaker		Appelez-nous	-
7	216111500		Breaker, Lock Side		Appelez-nous	-
11	216110800		Breaker,white ,ends		Appelez-nous	-
12	216373000		Frame-nameplate				$ 4.04
18	216707200		Knob-control				$ 44.10
21	216714600		Control-temperature				$ 132.30
27	216629601		Screw-hinge   (Replaces: 216629600)				$ 13.01
28	216039600		Hinge		Appelez-nous	-
30	216110700		Breaker,white ,corners				$ 28.45
59	216080300		Basket		Appelez-nous	-
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
75	216034301		Panel-access, White				$ 103.01
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
100	216081500		Track,basket		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	216080700		Basket-lower (2)				$ 84.70
