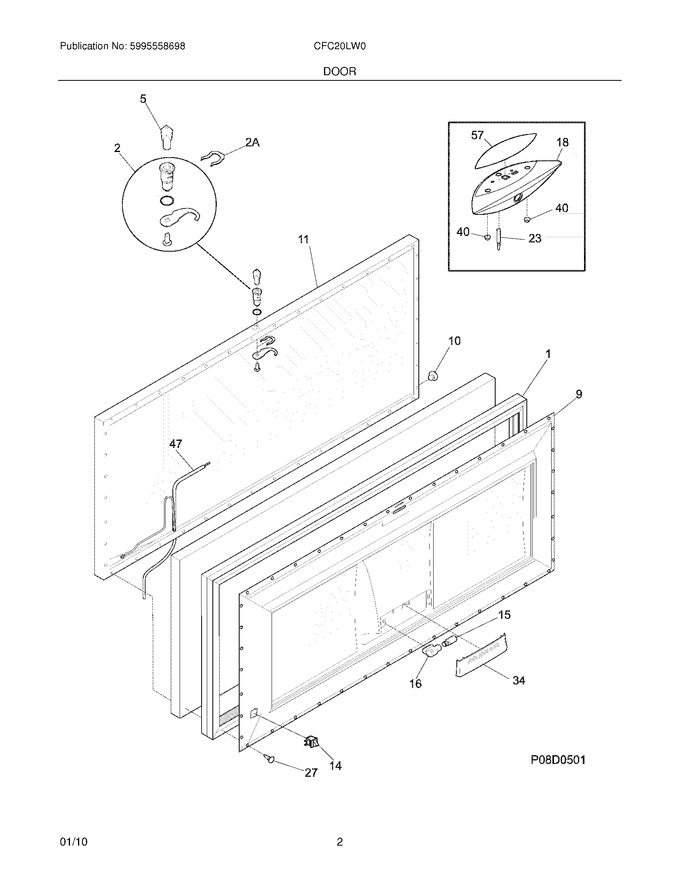

03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481411		Gasket,lid Seal ,white				$ 239.40
2	297090100		Lock Assy				$ 21.27
5	297147700		Key,lock			Immediately	$ 7.57
9	216829504		Panel-inner Door,frzr				$ 172.66
10	216923001		Plug Button,1/4``,white				$ 9.87
11	216130127		Lid,white				$ 273.32
14	216822900		Switch,light/lamp ,ramp   (Replaces: 216998000)			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
16	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
18	216897600		Handle,white				$ 60.58
23	216212700		Light-signal,amber		Appelez-nous	-
27	5303212828		Clip,panel Mtg				$ 16.63
34	297013900		Shield,light				$ 35.73
40	216922700		Fastener,.330 Dia Stud ,handle ,(2)				$ 12.05
47	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping				$ 13.01
57	216899518		Overlay		Appelez-nous	-
2A	297090900		Clip,spring				$ 10.85
F47	216908000		Harness-lid				$ 148.89
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
NI	216858001		Screw,8-18x.50 Ab ,no.10			Immediately	$ 10.85
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
