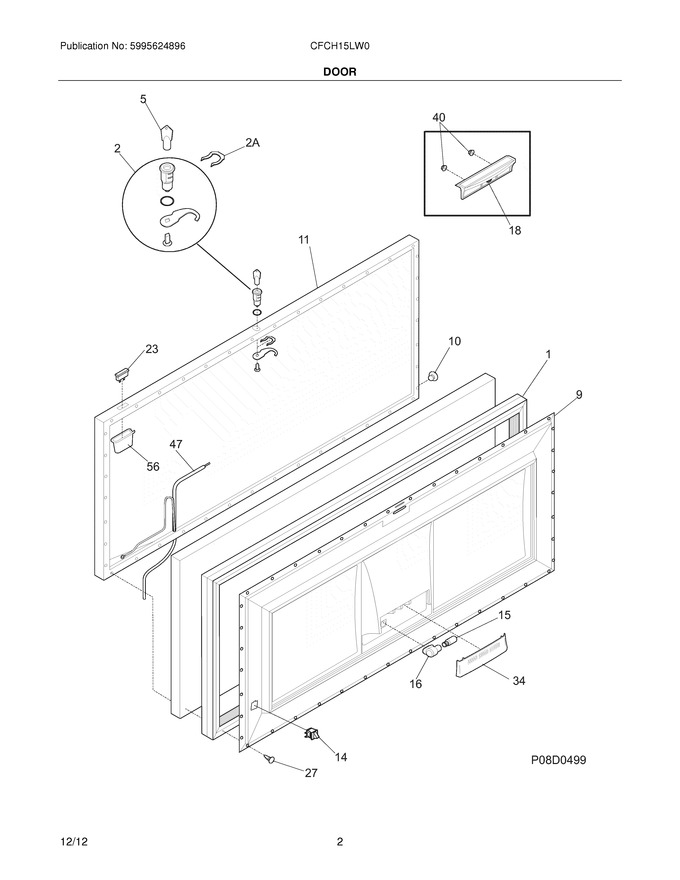

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216481211 | Gasket-door,white |
|
$ 204.03 | |||||
| 2 | 297090100 | Lock Assy |
|
$ 21.27 | |||||
| 5 | 297147700 | Key,lock |
|
Immediately | $ 7.57 | ||||
| 9 | 216829104 | Panel-lid |
|
$ 173.57 | |||||
| 10 | 216923001 | Plug Button,1/4``,white |
|
$ 9.87 | |||||
| 11 | 216129930 | Lid,white |
|
$ 280.25 | |||||
| 14 | 216822900 | Switch,light/lamp ,ramp (Replaces: 216998000) |
|
Immediately | $ 70.16 | ||||
| 15 | 5304517886 | Light Bulb/lamp (Replaces: 216846400) |
|
Immediately | $ 73.06 | ||||
| 16 | 297139501 | Socket,light/lamp ,25 W (Replaces: 216817600) |
|
$ 19.52 | |||||
| 18 | 216205006 | Handle |
|
- | |||||
| 23 | 297181900 | Light,signal ,amber |
|
$ 16.96 | |||||
| 27 | 5303212828 | Clip,panel Mtg |
|
$ 16.63 | |||||
| 34 | 297013900 | Shield,light |
|
$ 35.73 | |||||
| 40 | 216922700 | Fastener,.330 Dia Stud ,handle ,(2) |
|
$ 12.05 | |||||
| 56 | 297015600 | Cap,sig Light Seal |
|
- | |||||
| 2A | 297090900 | Clip,spring |
|
$ 10.85 | |||||
| 47No. | 5304504154 | Wiring Harness,lid/defrost ,with Light (Replaces: 216819900) |
|
$ 85.76 | |||||
| NI | 5304406520 | Clip,panel Mtg Kit ,(40) |
|
$ 125.83 | |||||
| NI | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| NI | 216858001 | Screw,8-18x.50 Ab ,no.10 |
|
Immediately | $ 10.85 |
