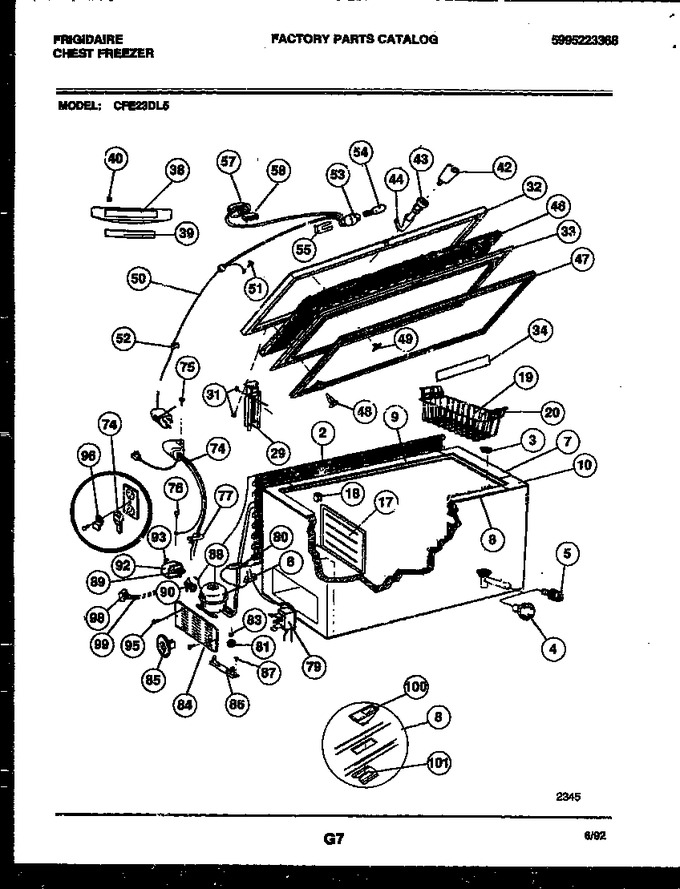

02 - Chest Freezer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5300300173		External Condenser (not Original Equipment--service Repl		Appelez-nous	-
3	5306593887		Plug, Drain, Liner		Appelez-nous	-
4	5306599932		Plug Drain Shell		Appelez-nous	-
5	06594053		Adapter, Hose		Appelez-nous	-
6	08016808		Grommet-control Tube		Appelez-nous	-
7	5303211221		Breaker Ends		Appelez-nous	-
8	5303925082		Breaker Front		Appelez-nous	-
9	5303925082		Breaker Rear		Appelez-nous	-
10	5303211222		Breaker Corners		Appelez-nous	-
12	08016769		Tip Up Shelf		Appelez-nous	-
13	08016771		Support Shelf		Appelez-nous	-
14	08016770		Support Shelf		Appelez-nous	-
17	216034600		Divider-drain Pan		Appelez-nous	-
18	5306594584		Supports Divider				$ 19.80
19	5308016768		Basket (4)		Appelez-nous	-
20	5308016799		Handle Basket-yellow (2)		Appelez-nous	-
20	5308016800		Handle Basket-green (2)		Appelez-nous	-
20	08016798		Handle Basket-red (2)		Appelez-nous	-
20	5308016806		Handle Basket-blue (2)		Appelez-nous	-
23	08009611		Insert Nut		Appelez-nous	-
24	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
29	5303925007		Hinge		Appelez-nous	-
31	5309950602		Screw Hinge				$ 5.30
32	216032302		Lid-exterior (almd)		Appelez-nous	-
33	216033502		Panel Inner Lid (almd)		Appelez-nous	-
34	08016793		Light Shield		Appelez-nous	-
38	5309950054		Handle		Appelez-nous	-
39	08013602		Insert Handle		Appelez-nous	-
40	5309948647		Fastener, Handle		Appelez-nous	-
42	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
43	5303925107		Lock-complete		Appelez-nous	-
44	5300300791		Lock Hook		Appelez-nous	-
46	5300128901		Insulation Lid		Appelez-nous	-
47	5308016767		Gasket Lid Brown		Appelez-nous	-
48	5303091422		Clip Panel (49)		Appelez-nous	-
49	5309948955		Clip-panel W/sig Light				$ 11.53
50	216040800		Wire Harness Lid		Appelez-nous	-
51	08037851		Screw Ground Wire				$ 3.57
52	09950610		Clip		Appelez-nous	-
53	216039700		Socket-light		Appelez-nous	-
54	5303091423		Light Bulb		Appelez-nous	-
55	5306599968		Retainer Socket		Appelez-nous	-
57	5308037857		Sealing Cap		Appelez-nous	-
58	5308002706		Signal Light				$ 39.11
74	5303212612		Wiring Harness		Appelez-nous	-
75	08009412		Screw		Appelez-nous	-
76	08009412		Screw		Appelez-nous	-
77	08016762		Clip Wires		Appelez-nous	-
79	5304496560		Cold Control   (Replaces: 5303212610)				$ 49.62
80	5303305677		Drier   (Replaces: 5308000027)			Immediately	$ 31.67
81	5308008778		Grommet Compr		Appelez-nous	-
83	216056400		Clip Compr		Appelez-nous	-
84	216022701		Access Panel		Appelez-nous	-
85	216034509		Control Knob		Appelez-nous	-
86	5303212615		Support, Compressor		Appelez-nous	-
87	08016776		Screw-support		Appelez-nous	-
88	5303916411		Compressor		Appelez-nous	-
89	5303017753		Relay		Appelez-nous	-
90	5303206836		Overload		Appelez-nous	-
92	5303006411		Cover, Terminal		Appelez-nous	-
93	5303006412		Clamp Cover		Appelez-nous	-
95	216858001		Screw-access Panel   (Replaces: 5303161215)			Immediately	$ 10.85
96	08016777		Retainer Power Cord		Appelez-nous	-
98	5303916391		Run Capacitor		Appelez-nous	-
99	5303280303		Harness-run Capacitor		Appelez-nous	-
100	5303211223		Latch Catch		Appelez-nous	-
101	5303208481		Support Latch		Appelez-nous	-
