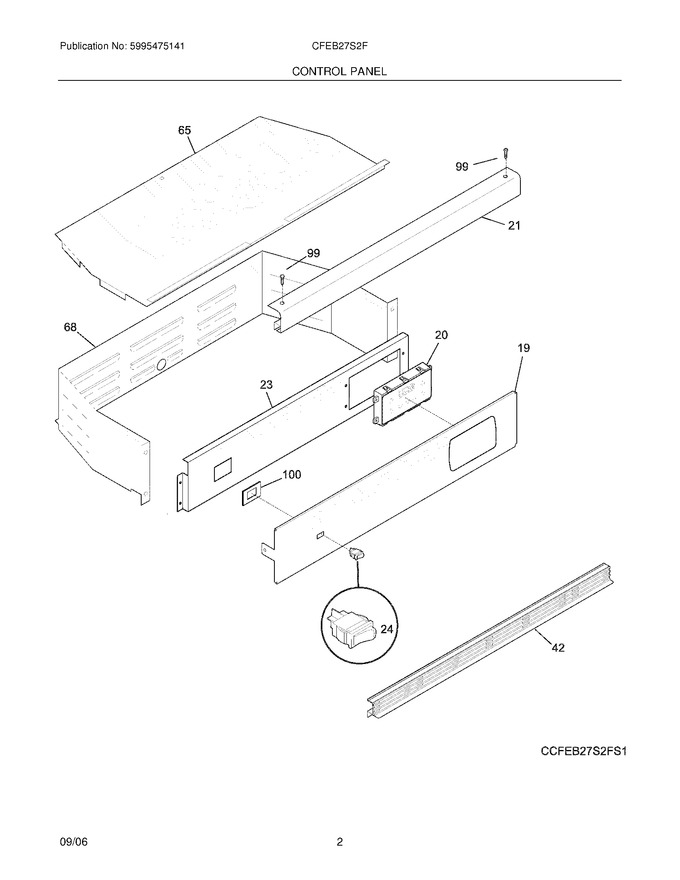

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318234203		Panel,control ,black		Appelez-nous	-
21	318027900		Trim,canopy ,black ,top				$ 69.20
23	318015046		Bracket,clock/timer Mtg		Appelez-nous	-
42	318026906		Trim-vent, Black				$ 88.94
65	318038802		Cover,control Housing		Appelez-nous	-
68	318182300		Housing-control				$ 48.47
99	5303307406		Screw,6-32 X 3/8 ,black ,(2)				$ 11.29
100	318112200		Plate,mounting ,rocker Switch		Appelez-nous	-
F20	318326210		Clock/timer,electronic ,black ,es100				$ 217.51
F24	5304527841		Switch-rocker,black   (Replaces: 316005602)			Immediately	$ 11.38
NI	318324801		Overlay,clock ,black ,es100				$ 12.97
NI	3201861		Screw,6 X 0.375 ,(4)				$ 0.76
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
