SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Body

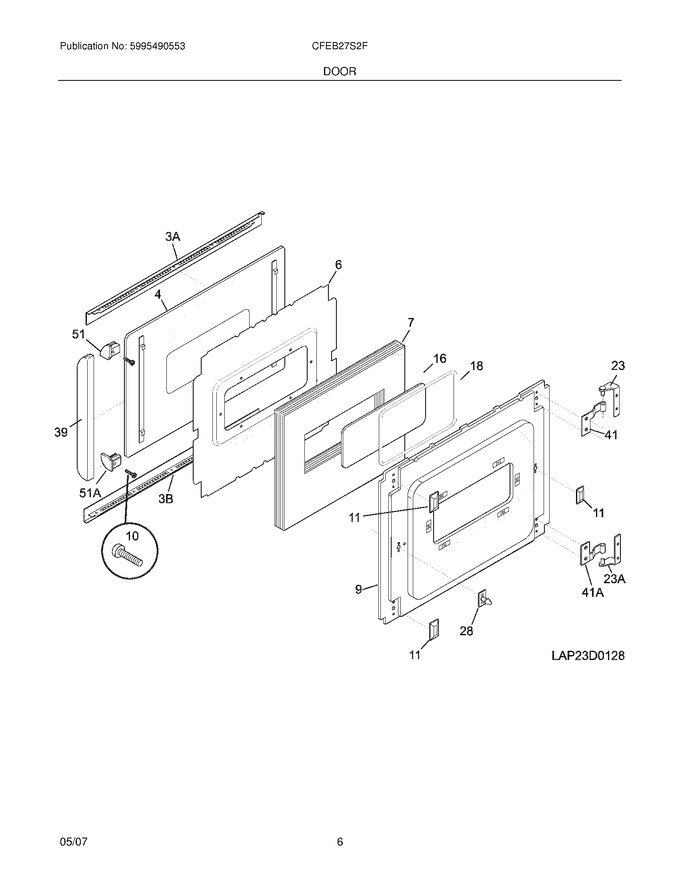

07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	318211901		Glass,door ,black ,outer				$ 122.69
6	5303316954		Shield-insulation		Appelez-nous	-
7	318285020		Insulation,oven Door		Appelez-nous	-
9	5303320491		Liner-oven Door		Appelez-nous	-
10	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
11	5303320493		Cover-hinge Cutout				$ 6.93
16	5303324250		Glass,door ,13 1/2 X 6 1/2				$ 184.54
18	318053204		Seal,rope ,lower Oven				$ 63.05
23	5303299712		Hinge-oven Door, Upper, Assy		Appelez-nous	-
28	318090220		Strike-door				$ 57.04
39	318229101		Handle,door ,black				$ 178.52
41	5303299746		Hinge-oven Door,upper		Appelez-nous	-
51	5303299740		Bracket, Handle Mtg, Black, Upper				$ 68.88
23A	5303299711		Hinge-oven Door, Lower, Assy		Appelez-nous	-
3A	5303299732		Trim-oven Door, Black, Upper				$ 92.40
3B	5303299733		Trim-oven Door, Black, Lower				$ 35.33
41A	5303299744		Hinge-oven Door,lower		Appelez-nous	-
51A	5303299741		Bracket, Handle Mtg, Black, Lower				$ 143.80
NI	5303320489		Plug,hinge Hole		Appelez-nous	-
NI	5304453707		Screw,8-10 X 3/8 ,(4)   (Replaces: 5303300155)			Immediately	$ 15.92
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	5303323277		Screw (8-18x13/32)				$ 8.66

    View Diagram in Separate Window       Print Part List
