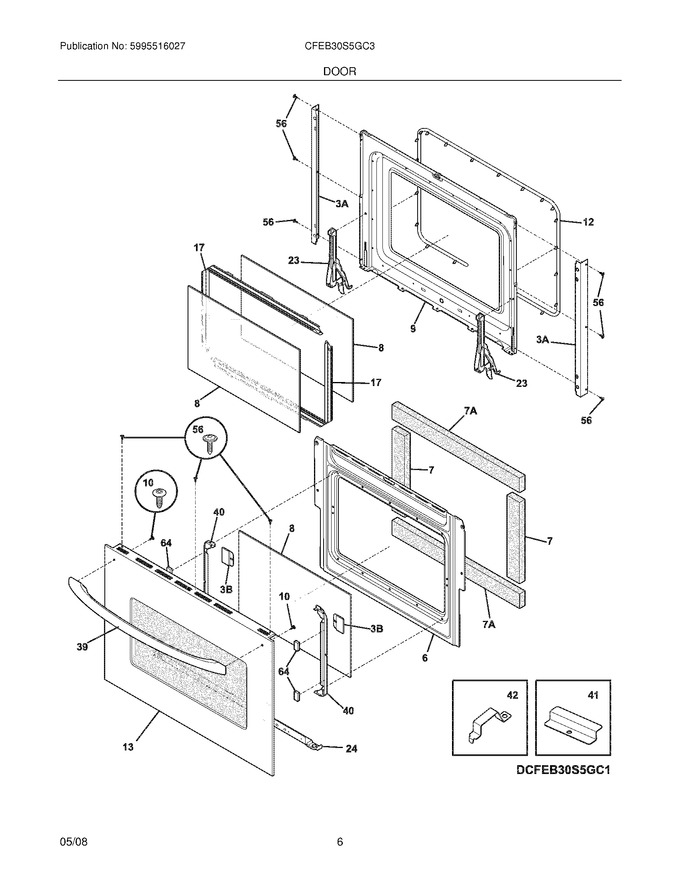

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318260522		Baffle,door		Appelez-nous	-
7	318372017		Insulation,door ,(2)   (Replaces: 318372000)				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	318259605		Liner,door		Appelez-nous	-
10	5304452028		Screw,handle Mtg ,10-14 X 1/2 ,(2)				$ 11.02
12	318053120		Seal,oven Door ,upper   (Replaces: 318053130)			Immediately	$ 159.62
13	318272183		Door Assy,glass ,stainless Steel ,outer				$ 441.63
17	318264733		Spacer,glass ,(2)   (Replaces: 318264710)				$ 72.05
23	318024715		Hinge,door ,(2)		Appelez-nous	-
39	316270200		Handle,door ,black				$ 136.40
40	318242702		Bracket,glass Holder ,upper Door ,(2)				$ 19.72
41	318370602		Bracket,glass Retainer ,(2)   (Replaces: 318370600)				$ 13.65
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
56	5304436875		Screw,8-18 X 1/2,black				$ 14.41
64	318165800		Spacer				$ 17.72
3A	318260401		Trim,oven Door ,side ,(2)				$ 51.66
3B	318262104		Cover,rear Door ,black ,(2)   (Replaces: 318262101)				$ 24.99
7A	318372016		Insulation,door ,(2)   (Replaces: 318372002)				$ 17.72
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5303323277		Screw (8-18x13/32)				$ 8.66

    View Diagram in Separate Window       Print Part List
