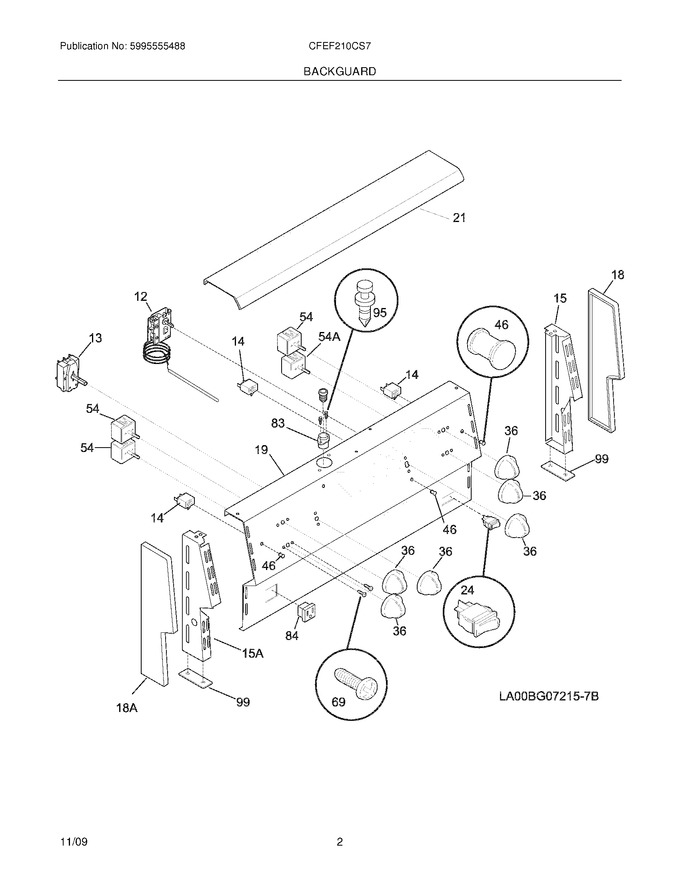

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5303304000		Bracket,end Cap Mtg. ,rh				$ 7.14
18	318254502		End Cap,white ,rh		Appelez-nous	-
19	318005476		Panel,control ,white		Appelez-nous	-
21	318350801		Trim,canopy ,white ,backsplash Top				$ 98.16
36	318197620		Knob,control ,white		Appelez-nous	-
46	318044511		Lens,indicator Light			Immediately	$ 25.66
69	5303288565		Screw,8-32 X 3/16 ,(8)   (Replaces: 5303323134)				$ 3.12
84	318146825		Outlet,electrical ,white-glossy ,combined				$ 18.38
95	5303324521		Clip,fuse Holder Mtg		Appelez-nous	-
99	5303304544		Spacer,end Cap Mtg.		Appelez-nous	-
15A	5303304001		Bracket,end Cap Mtg. ,lh				$ 5.62
18A	318254503		End Cap,white ,lh		Appelez-nous	-
F12	318059310		Thermostat,oven			Immediately	$ 374.73
F13	318057910		Switch-selector				$ 158.03
F14	318369501		Lamp,indicator			Immediately	$ 67.62
F24	318037513		Switch,rocker ,white ,oven Light				$ 62.11
F54	318293810		Switch,surface Element ,small			Immediately	$ 100.17
F54A	318293811		Switch,surface Element ,large			Immediately	$ 88.67
F83	318115601		Fuse,15 Amp ,w/fuse Holder				$ 33.86
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
