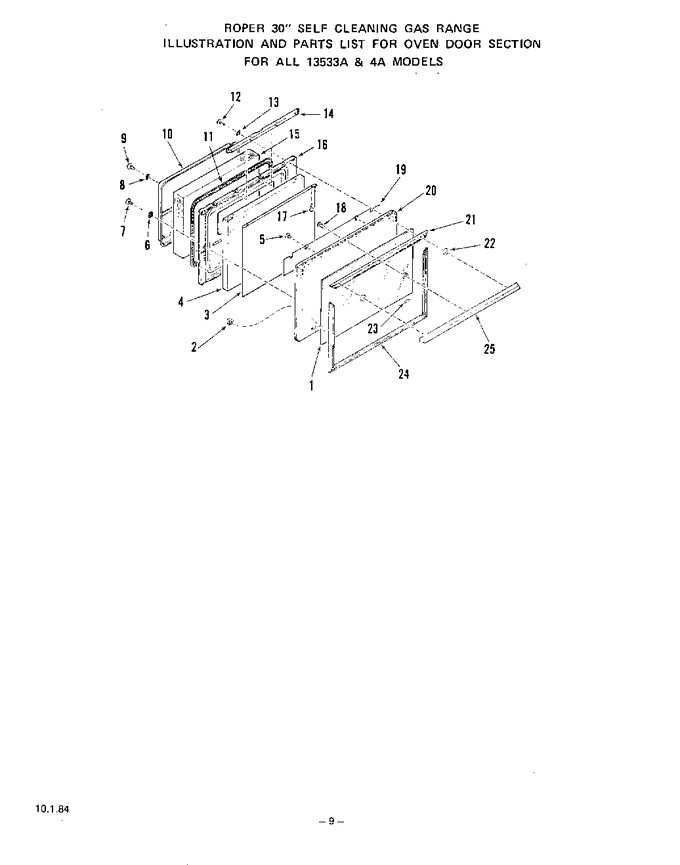

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	319297		Outer Door Glass		Appelez-nous	-
2	300007		Fastener (7 Required)		Appelez-nous	-
3	304129		Insulation Retainer		Appelez-nous	-
4	304128		Insulation-oven Door Lining		Appelez-nous	-
5	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
6	109156		Lockwasher		Appelez-nous	-
7	102376		Screw 10-32 X 1/2``		Appelez-nous	-
8	106462		Washer		Appelez-nous	-
9	316365		Screw 10-32x7/16``		Appelez-nous	-
10	320678		Plug-oven Door Lining		Appelez-nous	-
11	282441		Gasket-oven Door		Appelez-nous	-
12	319893		Screw 10-32x2 3/4``		Appelez-nous	-
13	21067		Washer		Appelez-nous	-
14	282090		Stiffener-oven Door Lining		Appelez-nous	-
15	321930		Insulation-oven Door Plug		Appelez-nous	-
16	304102		Lining-oven Door		Appelez-nous	-
17	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
18	313190		Screw 10-32x1``		Appelez-nous	-
19	310916		Shield-oven Door Lining		Appelez-nous	-
20	316394		Front Panel-oven Door (golden Wheat)		Appelez-nous	-
20	316395		Front Panel-oven Door (almond)		Appelez-nous	-
20	316391		Front Panel-oven Door (white)		Appelez-nous	-
21	319294		Top Frame-oven Door Glass		Appelez-nous	-
22	DE81-05147A		Spacer (3 Required)   (Replaces: 107158)				$ 205.79
23	112370		Cushion (6 Required)		Appelez-nous	-
24	319292		Frame-oven Door Glass		Appelez-nous	-
25	316398		Handle-oven Door		Appelez-nous	-
