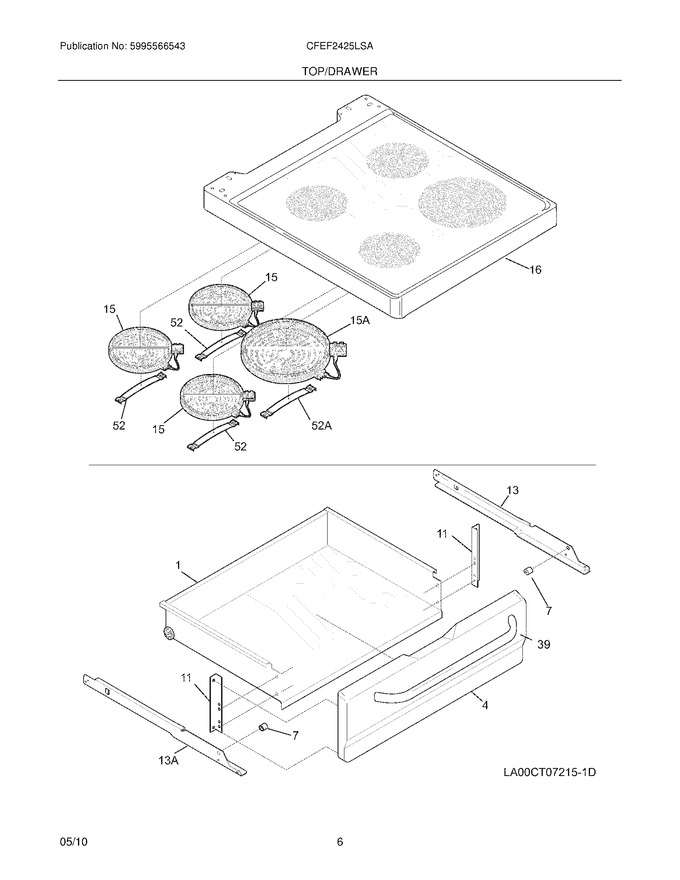

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303325610 | Drawer |
|
$ 212.52 | |||||
| 4 | 318259001 | Panel,drawer Front ,stainless |
|
$ 238.04 | |||||
| 7 | 318332200 | Roller,nylon |
|
- | |||||
| 11 | 5303324427 | Bracket,drawer Support ,(2) |
|
$ 5.20 | |||||
| 13 | 318018100 | Channel-drawer,rh |
|
Immediately | $ 30.01 | ||||
| 16 | 318228706 | Main Top,steel/glass ,black |
|
- | |||||
| 39 | 318362822 | Handle Assembly,door ,black ,w/spacer |
|
$ 104.05 | |||||
| 52 | 318122006 | Spring,element Mtg ,small |
|
$ 66.25 | |||||
| 13A | 318018101 | Channel-drawer,lh |
|
$ 63.11 | |||||
| 52A | 318122007 | Spring,element Mtg ,large |
|
$ 53.45 | |||||
| F15 | 318178110 | Element,surface ,6`` ,1200w ,(2) ,radiant (Replaces: 318198846) |
|
Immediately | $ 122.86 | ||||
| F15A | 318198834 | Element,surface ,8`` /large ,2200 W |
|
$ 205.36 | |||||
| FNI | 318199904 | Harness,wiring ,cooktop |
|
- | |||||
| NI | 08011955 | Screw,10-24 X 0.375 ,square Drive |
|
Immediately | $ 9.36 | ||||
| NI | 318163601 | Cleaner-cooktop |
|
$ 0.42 |
