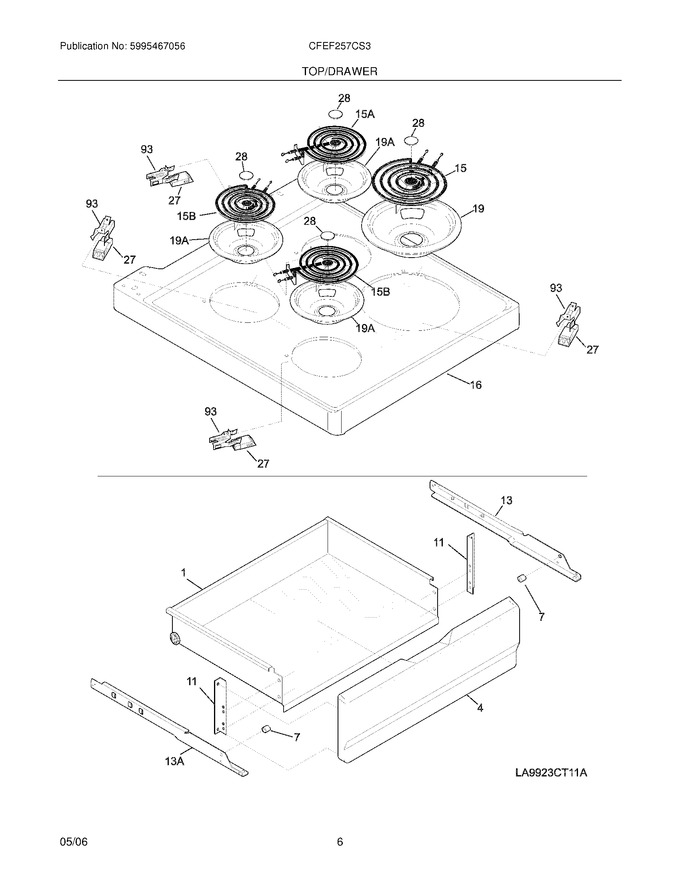

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303325610 | Drawer |
|
$ 212.52 | |||||
| 4 | 318044221 | Panel-drawer,white |
|
- | |||||
| 7 | 318014800 | Spacer |
|
$ 16.59 | |||||
| 11 | 5303324427 | Bracket,drawer Support ,(2) |
|
$ 5.20 | |||||
| 13 | 318018100 | Channel-drawer,rh |
|
Immediately | $ 30.01 | ||||
| 16 | 318120921 | Main Top,white |
|
$ 451.67 | |||||
| 19 | A316222301 | Pan,surface Element ,large ,black (Replaces: 318067050) |
|
Immediately | $ 12.53 | ||||
| 28 | 5303301461 | Medallion, Surface Element |
|
- | |||||
| 93 | 5303935058 | Bracket-terminal Block (Replaces: 5303304731) |
|
Immediately | $ 13.81 | ||||
| 13A | 318018101 | Channel-drawer,lh |
|
$ 63.11 | |||||
| 19A | A316222201 | Pan,surface Element ,small ,black (Replaces: 318067040) |
|
Immediately | $ 14.64 | ||||
| F15 | 316442303 | Element,surface ,large/8 Inch ,2400w ,medallion Incl (Replaces: 5304437242) |
|
Immediately | $ 207.45 | ||||
| F15A | 318372211 | Element,surface ,6`` ,small (Replaces: 08067762) |
|
Immediately | $ 45.14 | ||||
| F15B | 316439802 | Element,surface ,small/6 Inch ,1250w ,medallion Incl (Replaces: 5304437241) |
|
Immediately | $ 192.78 | ||||
| F27 | 318223400 | Terminal Block,surface Element ,24`` ,white Leads |
|
$ 15.07 | |||||
| F27 | 318223401 | Terminal Block,surface Element ,27`` ,black Leads |
|
$ 31.13 | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 |
