SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door

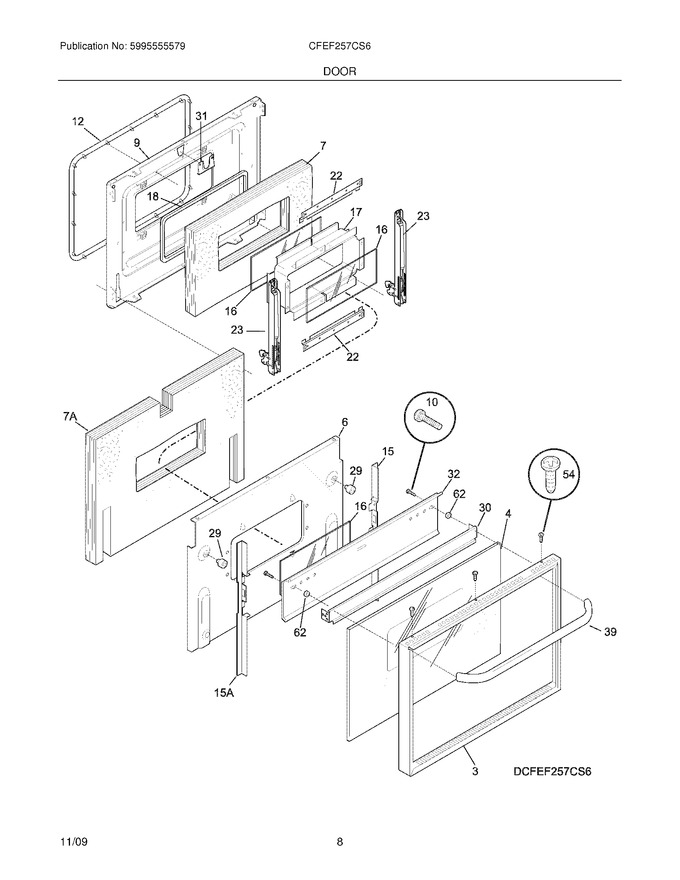

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318415501		Trim,oven Door ,white				$ 146.53
4	318051801		Glass,oven Door ,white ,outer				$ 87.52
6	318415400		Shield,oven Door				$ 57.17
7	318285024		Insulation,oven Door		Appelez-nous	-
9	318156414		Liner,oven Door				$ 157.03
10	5303323139		Screw,10-24 X 0.906				$ 13.46
12	5303325040		Seal,oven Door				$ 96.34
15	5303311153		Bracket,glass Mtg ,rs				$ 10.87
16	5303310533		Glass,oven Door ,6.50 X 15.50 ,inner ,heat Barrier				$ 220.55
17	318139001		Spacer,oven Door Glass ,inner Frame				$ 44.26
18	318293500		Gasket,door Glass Seal				$ 31.61
22	5303310511		Bar,glass Retainer		Appelez-nous	-
23	318567111		Hinge,oven Door ,(2)		Appelez-nous	-
29	318147412		Bumper,base				$ 7.33
30	318014017		Trim-handle,white				$ 39.38
31	5303310536		Latch,oven Door				$ 30.66
32	318057203		Deflector-handle				$ 5.63
39	318362820		Handle Assembly,door ,white ,w/spacer				$ 115.76
54	316021109		Screw,8-18 X 0.531 ,white   (Replaces: 5303317175)			Immediately	$ 27.50
62	5303310504		Spacer,(2)		Appelez-nous	-
15A	5303311154		Bracket,glass Mtg ,ls		Appelez-nous	-
7A	318346070		Insulation,door		Appelez-nous	-
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303307980		Screw,8-32 X 0.437 ,(8)			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
