SELECT A DIAGRAM

01 - Cover

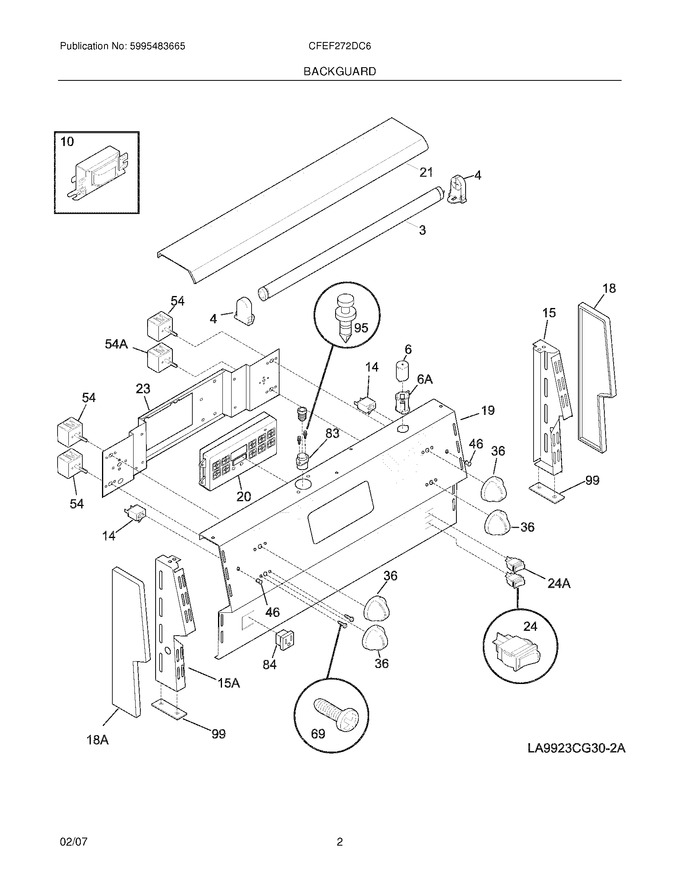

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303324517		Lamp,flourescent ,backguard		Appelez-nous	-
4	318110300		Receptacle-lamp,rh/lh				$ 11.82
6	5308068062		Starter,lamp				$ 30.46
14	5303323991		Lamp,indicator				$ 26.25
15	5303304000		Bracket,end Cap Mtg. ,rh				$ 7.14
18	318254500		End Cap,black ,rh		Appelez-nous	-
19	318005492		Panel,control ,black		Appelez-nous	-
21	318350800		Trim,canopy ,black ,backsplash Top				$ 107.52
23	318015045		Bracket,clock/timer Mtg				$ 38.12
36	318197621		Knob,control ,black				$ 4.73
46	318044511		Lens-indicator Light   (Replaces: 318044510)			Immediately	$ 25.66
69	5304453272		Screw,mtg. ,no.8-32 X 1/4``		Appelez-nous	-
84	318146827		Outlet,electrical ,black ,combined				$ 12.21
95	5303324521		Clip,fuse Holder Mtg		Appelez-nous	-
99	5303304544		Spacer,end Cap Mtg.		Appelez-nous	-
15A	5303304001		Bracket,end Cap Mtg. ,lh				$ 5.62
18A	318254501		End Cap,black ,lh		Appelez-nous	-
6A	318110400		Receptacle,starter				$ 52.29
F10	318122803		Ballast,lamp		Appelez-nous	-
F20	318185403		Clock/timer,electronic ,black ,es300				$ 432.25
F24	318037515		Switch,rocker ,black ,oven Light				$ 60.96
F24A	318037505		Switch,rocker ,black ,flourescent				$ 8.40
F54	318293810		Switch,surface Element ,small			Immediately	$ 100.17
F54A	318293811		Switch,surface Element ,large			Immediately	$ 88.67
F83	318115601		Fuse,15 Amp ,w/fuse Holder				$ 33.86
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	316220805		Overlay,control ,black   (Replaces: 318214502)				$ 49.40
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
