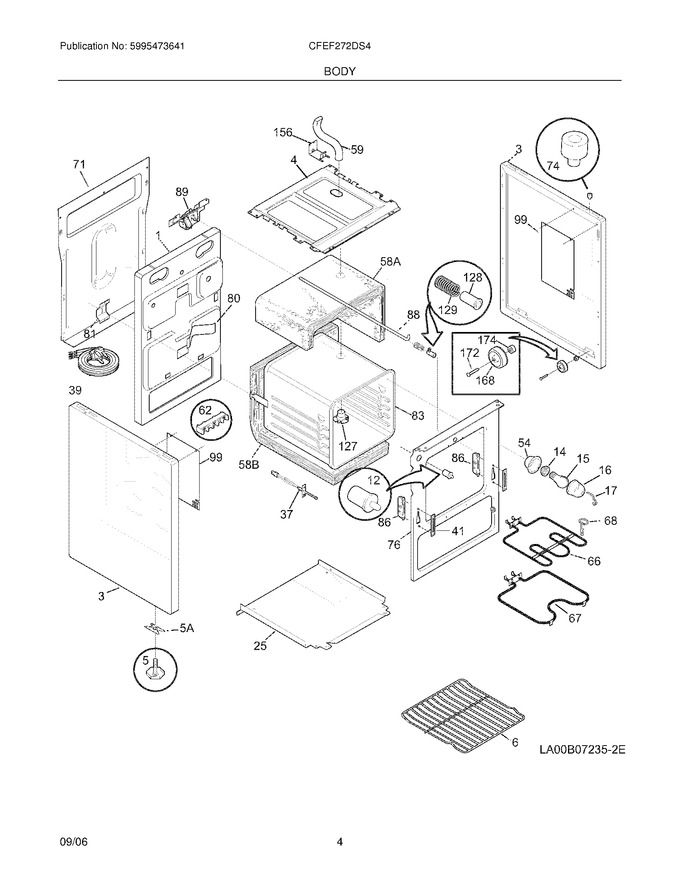

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318095002		Panel,main Back				$ 122.90
3	318159713		Panel,bodyside ,white ,(2)		Appelez-nous	-
4	318126510		Burner Box				$ 107.42
5	318175510		Screw-leveling   (Replaces: 318175503)			Immediately	$ 24.26
6	318345201		Rack,oven				$ 82.69
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 08011086)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
25	5303325069		Shield,oven Bottom		Appelez-nous	-
41	5303310526		Cover-hinge Cutout				$ 83.00
54	318222400		Housing,oven Light				$ 58.22
59	318072555		Tube,vent ,oven		Appelez-nous	-
62	5303935061		Terminal Block Kit		Appelez-nous	-
66	318255605		Element,broil ,2750w   (Replaces: 318255600)			Immediately	$ 192.78
68	5304403015		Support,hanger ,(2) ,broil Element				$ 35.04
71	318086505		Panel,cover		Appelez-nous	-
74	318147412		Bumper,base				$ 7.33
76	318123103		Frame,oven Front ,w/wheels				$ 82.89
80	5303324473		Bracket,oven Mounting		Appelez-nous	-
81	318192400		Spring,oven				$ 312.53
83	318089601		Liner,oven Complete				$ 284.39
86	5303310524		Receptacle,hinge		Appelez-nous	-
88	5303311160		Rod-latch		Appelez-nous	-
99	5303324441		Panel,baffle		Appelez-nous	-
127	318317100		Adapter Assembly,vent Tube ,w/converter				$ 75.13
128	5303311163		Bushing		Appelez-nous	-
129	5303311164		Spring				$ 18.95
156	318221900		Bracket,vent Tube		Appelez-nous	-
168	08011155		Roller				$ 6.88
172	08011131		Rivet,roller Shaft ,0.250 X 1.500		Appelez-nous	-
174	5303324511		Spacer, Roller		Appelez-nous	-
58A	318285019		Insulation,oven Wrapper		Appelez-nous	-
58B	318285038		Insulation,oven Back		Appelez-nous	-
5A	08013303		Tee Nut,snap-in ,levelling Screw		Appelez-nous	-
F12	318394803		Switch,light   (Replaces: 318089913)			Immediately	$ 44.23
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F39	318113108		Cord,electric		Appelez-nous	-
F67	318255001		Element,bake ,2400w			Immediately	$ 267.91
F89	318095957		Motor,latch Assy ,w/brkt & Switch   (Replaces: 318095939)			Immediately	$ 127.75
NI	5303323133		Screw,8-18 X 0.500		Appelez-nous	-
NI	318120711		Switch				$ 87.68
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	318053810		Gasket,vent				$ 29.40
NI	3201861		Screw,6 X 0.375 ,(4)				$ 0.76
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
