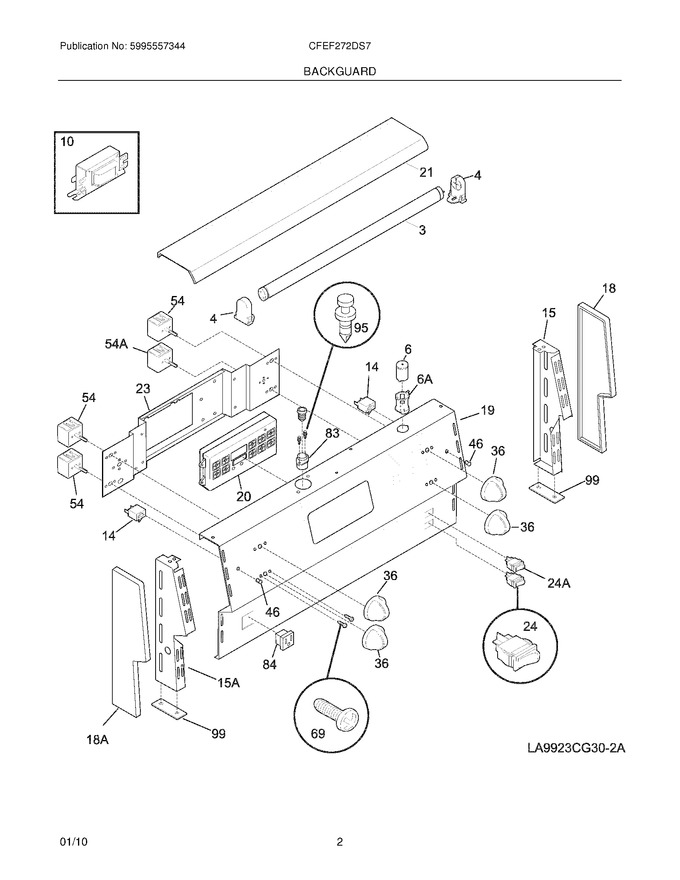

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303324517		Lamp,flourescent ,backguard		Appelez-nous	-
4	318110300		Receptacle-lamp,rh/lh				$ 11.82
6	5308068062		Starter,lamp				$ 30.46
15	5303304000		Bracket,end Cap Mtg. ,rh				$ 7.14
18	318254502		End Cap,white ,rh		Appelez-nous	-
19	318005493		Panel,control ,white		Appelez-nous	-
21	318350801		Trim,canopy ,white ,backsplash Top				$ 98.16
23	318015045		Bracket,clock/timer Mtg				$ 38.12
36	318197620		Knob,control ,white		Appelez-nous	-
46	318044511		Lens,indicator Light			Immediately	$ 25.66
69	5304453272		Screw,mtg. ,no.8-32 X 1/4``		Appelez-nous	-
84	318146825		Outlet,electrical ,white-glossy ,combined				$ 18.38
95	5303324521		Clip,fuse Holder Mtg		Appelez-nous	-
99	5303304544		Spacer,end Cap Mtg.		Appelez-nous	-
15A	5303304001		Bracket,end Cap Mtg. ,lh				$ 5.62
18A	318254503		End Cap,white ,lh		Appelez-nous	-
6A	318110400		Receptacle,starter				$ 52.29
F10	318122807		Ballast,lamp				$ 66.34
F14	318369501		Lamp,indicator			Immediately	$ 67.62
F20	318414201		Clock/timer,electronic ,white ,es300				$ 192.36
F24	318037513		Switch,rocker ,white ,oven Light				$ 62.11
F24A	318037503		Switch,rocker ,white ,flourescent				$ 7.77
F54	318293810		Switch,surface Element ,small			Immediately	$ 100.17
F54A	318293811		Switch,surface Element ,large			Immediately	$ 88.67
F83	318115601		Fuse,15 Amp ,w/fuse Holder				$ 33.86
FNI	318232425		Harness,wiring ,light		Appelez-nous	-
FNI	318231871		Harness,wiring ,pilot Light		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	316419137		Overlay,control ,white   (Replaces: 318214512)			Immediately	$ 31.34
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
