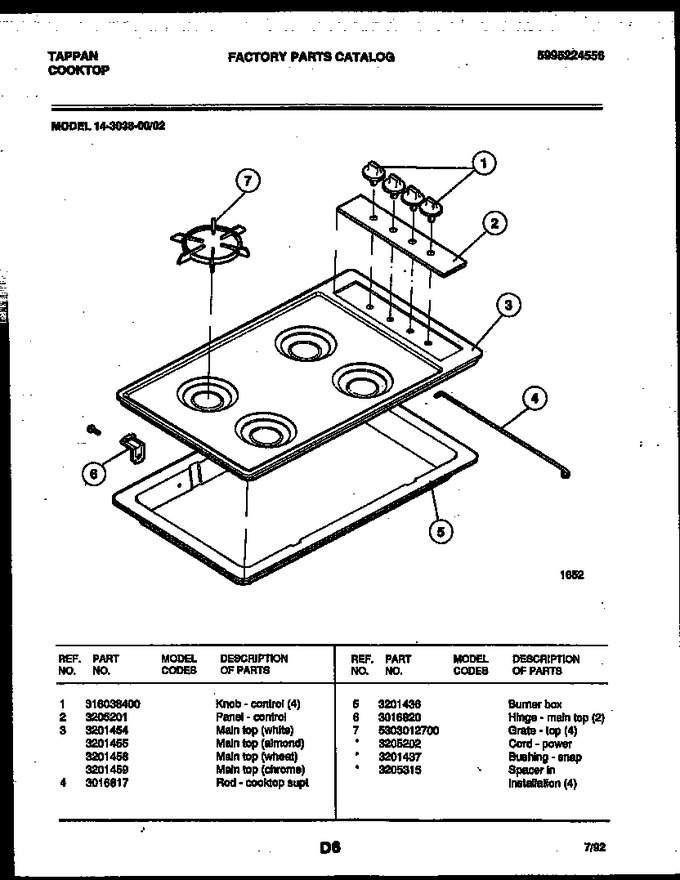

SELECT A DIAGRAM
02 - Cooktop Parts
03 - Burner, Manifold And Gas Control
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316038400 | Knob - Control (4) |
|
- | |||||
| 2 | 3205201 | Panel-control |
|
- | |||||
| 3 | 3201454 | Main Top (white) |
|
- | |||||
| 4 | 3016817 | Rod - Cooktop Supt |
|
- | |||||
| 5 | 3201436 | Burner Box |
|
- | |||||
| 6 | 3016820 | Hinge - Main Top (2) |
|
- | |||||
| 7 | 5303012700 | Grate - Top (4) |
|
- | |||||
| *75915 | 3205202 | Cord - Power |
|
- | |||||
| *75915 | 5304513507 | Bushing - Snap (Replaces: 3201437) |
|
$ 9.10 | |||||
| *75915 | 3205315 | Spacer In Installation (4) |
|
- |
