SELECT A DIAGRAM

01 - Cover


03 - Backguard

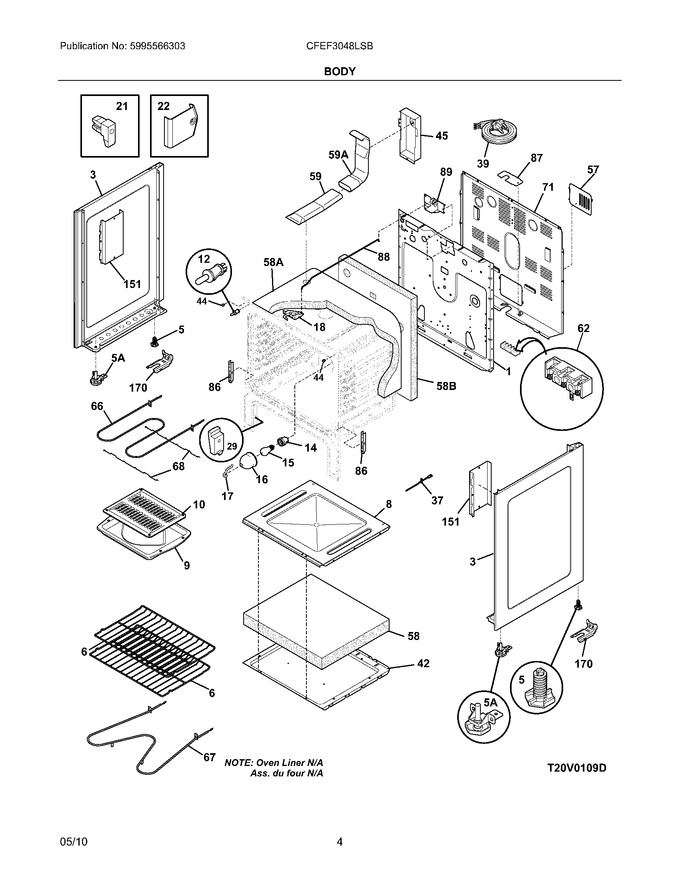

05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316401802		Panel,main Back		Appelez-nous	-
3	316400144		Panel,bodyside ,black ,rh   (Replaces: 316400118)			Immediately	$ 134.69
3	316400145		Panel,bodyside ,black ,lh   (Replaces: 316400119)			Immediately	$ 133.93
5	316272900		Screw,leveling ,plastic ,rear ,(2)			Immediately	$ 27.50
6	316496201		Rack,oven ,(2)   (Replaces: 316496202)			Immediately	$ 103.48
8	316400601		Panel,oven Bottom				$ 125.87
9	316081900		Pan,broileroptional Access0ry				$ 65.89
10	316082000		Insert,broiler Panoptional Access0ry				$ 68.85
12	316445501		Switch,oven Light ,door Frame				$ 90.01
14	316116400		Receptacle,oven Light			Immediately	$ 56.10
15	316538904		Lamp,oven Light   (Replaces: 316538901)			Immediately	$ 20.48
16	5304524341		Lens,oven Light ,glass   (Replaces: 318406100)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
21	316408000		Clip,bodyside				$ 18.20
22	316567600		Bracket-bodyside,front ,(2)		Appelez-nous	-
29	807047102		Glide,drawer ,front   (Replaces: 316407301)			Immediately	$ 23.82
42	316400701		Shield,wool ,lower				$ 162.30
44	316517600		Spacer,oven Door				$ 12.05
45	316234100		Shield,wire ,vent Tube				$ 70.16
57	316457801		Cover,access				$ 12.89
58	316403803		Insulation,oven Bottom				$ 43.95
59	316208401		Vent Tube,assembly ,w/catalyst				$ 194.14
62	5303935061		Terminal Block Kit		Appelez-nous	-
67	316075103		Element,bake   (Replaces: 316075104)			Immediately	$ 42.36
68	316404002		Support,element ,broil   (Replaces: 316404000)				$ 8.75
71	316422304		Shield,rear Wall				$ 115.53
86	316441300		Receptacle,hinge ,(2)   (Replaces: 316537400)				$ 21.97
87	316081202		Bracket,cable Mtg				$ 4.96
88	316203500		Rod,auto Latch				$ 72.30
151	316404600		Shield,bodyside				$ 49.30
170	316112005		Anti Tip Kit,assembly   (Replaces: 316112004)			Immediately	$ 18.91
58A	316406604		Insulation,oven Wrapper   (Replaces: 316406601)			Immediately	$ 69.77
58B	316406500		Insulation,oven Back				$ 88.60
59A	316208304		Tube,oven Vent ,upper				$ 80.09
5A	5304509869		Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg   (Replaces: 316498900)			Immediately	$ 15.08
F170	316541700		Template,anti-tip		Appelez-nous	-
F170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 12.89
F170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
F18	316405800		Latch Assembly,oven Door			Immediately	$ 56.74
F37	316490000		Probe,oven Temp			Immediately	$ 58.30
F39	318113111		Cord,electric				$ 95.55
F66	316203200		Element-broil			Immediately	$ 164.45
F89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 52.34
FNI	316580272		Harness,wiring ,main   (Replaces: 316580204)				$ 133.96
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316260800		Screw-shoulder,w/shoulder ,no.8-18 X 1/2``				$ 13.46
NI	316506000		Bracket,support ,oven Bottom ,(2)				$ 4.55
NI	316282700		Screw,w/washer ,8-18				$ 9.93
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	316581300		Retainer,wire				$ 4.26
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 11.34
NI	5303289910		Screw,8a ,1``				$ 5.67
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	316418901		Screw,trilobe ,10-32 X 5/16`` ,black				$ 14.18

    View Diagram in Separate Window       Print Part List
