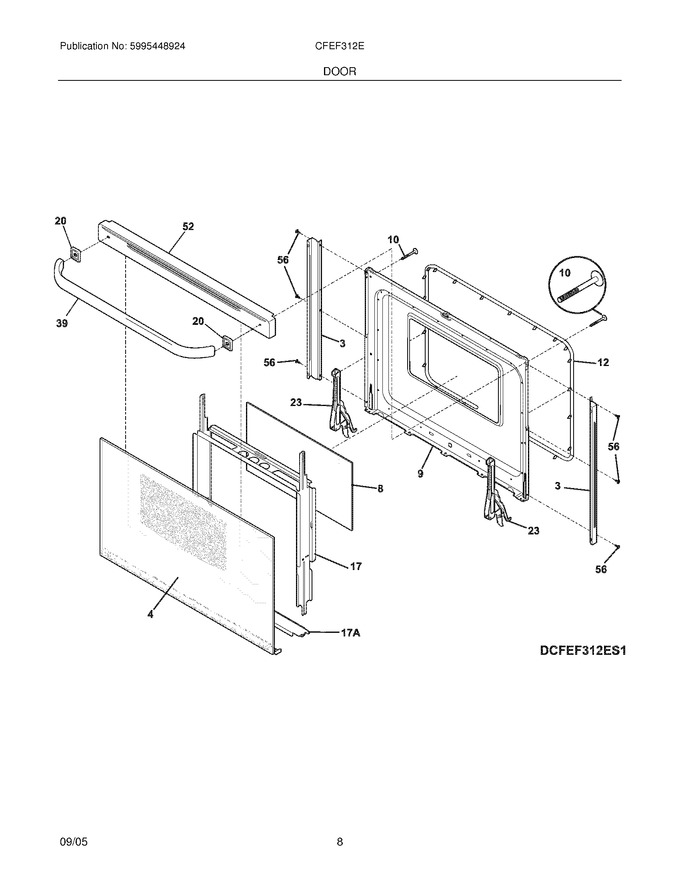

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318301402		Trim,oven Door ,bisque		Appelez-nous	-
4	318304101		Door Assembly,glass ,bisque ,w/trim		Appelez-nous	-
8	316427700		Glass,oven Door ,inner				$ 178.09
9	318259625		Liner,oven Door				$ 227.96
10	08011955		Screw,10-24 X 0.375 ,square Drive			Immediately	$ 9.36
12	318053325		Seal,oven Door ,lower Oven				$ 64.94
17	318300503		Bracket,glass				$ 46.15
20	318014303		Spacer,handle ,bisque ,(2)		Appelez-nous	-
23	318024721		Hinge,lower Door ,(2)		Appelez-nous	-
23	5303311259		Hinge,oven Door ,(2)		Appelez-nous	-
39	316091124		Handle,door ,bisque		Appelez-nous	-
52	318304201		Trim,door ,bisque ,upper				$ 68.62
56	5304448822		Screw,8-18 X 1/2 ,bisque ,(6)		Appelez-nous	-
17A	318300601		Bracket,glass ,lower				$ 16.47
NI	5303300414		Spacer, Cork & Rubber				$ 13.18
NI	5303307980		Screw,8-32 X 0.437			Immediately	$ 14.18
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
