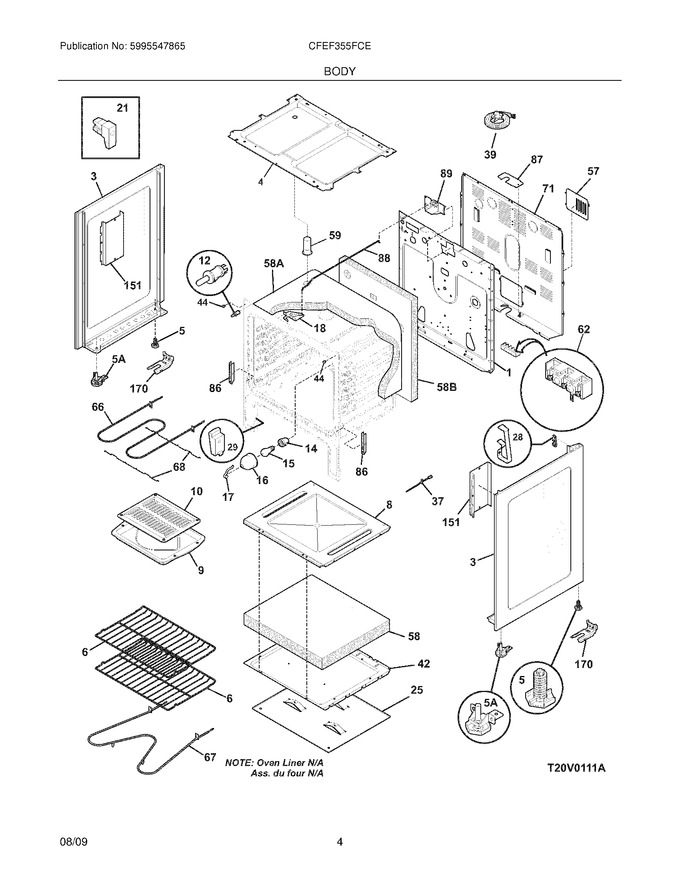

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316401801		Panel,main Back				$ 85.26
3	316400145		Panel,bodyside ,black ,lh   (Replaces: 316400119)			Immediately	$ 133.93
3	316400144		Panel,bodyside ,black ,rh   (Replaces: 316400118)			Immediately	$ 134.69
4	5304522901		Burner Box   (Replaces: 316201408)				$ 85.69
5	316272900		Screw,leveling ,plastic ,rear ,(2)			Immediately	$ 27.50
6	316496201		Rack,oven ,(2)			Immediately	$ 103.48
8	316400601		Panel,oven Bottom				$ 125.87
9	316081900		Pan,broiler				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
12	316445501		Switch,oven Light ,door Frame				$ 90.01
14	316116400		Receptacle,oven Light			Immediately	$ 56.10
15	316538904		Lamp,oven Light   (Replaces: 316538901)			Immediately	$ 20.48
16	5304524341		Lens,oven Light ,glass   (Replaces: 318406100)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
21	316408000		Clip,bodyside				$ 18.20
25	316406200		Shield,heat ,lower				$ 87.97
28	316045000		Clip,wiring Harness ,green ,main Top		Appelez-nous	-
29	807047102		Glide,drawer ,front   (Replaces: 316407301)			Immediately	$ 23.82
42	316407700		Shield,wool ,lower				$ 131.19
44	316517600		Spacer,oven Door				$ 12.05
57	316457801		Cover,access				$ 12.89
58	316403800		Insulation,oven Bottom		Appelez-nous	-
59	316073606		Tube,oven Vent				$ 56.70
62	5303935061		Terminal Block Kit		Appelez-nous	-
67	316075103		Element,bake   (Replaces: 316075104)			Immediately	$ 42.36
68	316404002		Support,element ,broil   (Replaces: 316404000)				$ 8.75
71	316422304		Shield,rear Wall				$ 115.53
86	316441300		Receptacle,hinge ,(2)   (Replaces: 316537400)				$ 21.97
87	316081202		Bracket,cable Mtg				$ 4.96
88	316203500		Rod,auto Latch				$ 72.30
151	316404600		Shield,bodyside				$ 49.30
170	316112005		Anti Tip Kit,assembly   (Replaces: 316112004)			Immediately	$ 18.91
58A	316406604		Insulation,oven Wrapper   (Replaces: 316406601)			Immediately	$ 69.77
58B	316406500		Insulation,oven Back				$ 88.60
5A	5304509869		Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg   (Replaces: 316498900)			Immediately	$ 15.08
F170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
F170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 12.89
F18	316405800		Latch Assembly,oven Door			Immediately	$ 56.74
F37	316490000		Probe,oven Temp			Immediately	$ 58.30
F39	318113111		Cord,electric				$ 95.55
F66	316203200		Element-broil			Immediately	$ 164.45
F89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 52.34
FNI	316443013		Harness Wiring,main				$ 240.45
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 11.34
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	316418901		Screw,trilobe ,10-32 X 5/16`` ,black				$ 14.18
NI	3203550		Plug,button ,oven Bottom			Immediately	$ 15.22
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
