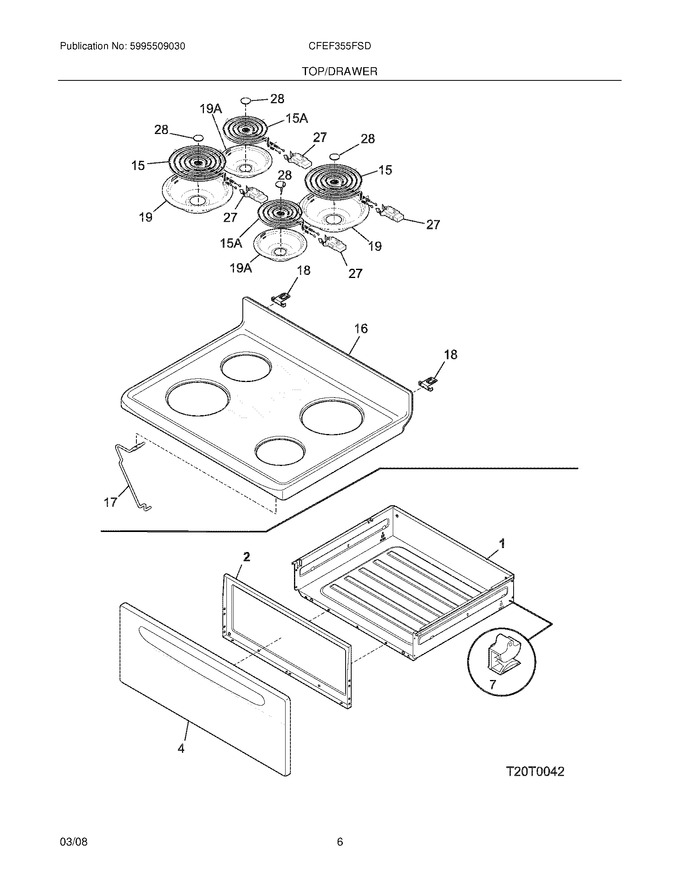

07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer,utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304527989		Liner,drawer   (Replaces: 316403300)				$ 28.83
4	316403501		Panel,drawer Front ,white				$ 30.30
7	316407402		Glide,drawer ,rear   (Replaces: 316407400)			Immediately	$ 9.86
16	316202388		Main Top,white   (Replaces: 316202363)				$ 407.24
17	316057601		Rod,support ,main Top				$ 64.49
18	316436600		Hinge Bracket,maintop ,(2)				$ 45.36
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
28	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
F15	316442300		Element,surface ,8`` ,large   (Replaces: 318372203)			Immediately	$ 59.16
F15A	318372210		Element,surface ,6`` ,small   (Replaces: 318372200)			Immediately	$ 20.21
F19	A316222301		Pan-surface Element, Large/8 Inch, Black Enamel   (Replaces: 316048400)			Immediately	$ 12.53
F19A	A316222201		Pan-surface Element, Small/6 Inch, Black Enamel   (Replaces: 316048401)			Immediately	$ 14.64
FNI	316580420		Wiring Harness,surface Element   (Replaces: 316253501)			Immediately	$ 196.47
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316045000		Clip,wiring Harness ,green ,main Top		Appelez-nous	-
