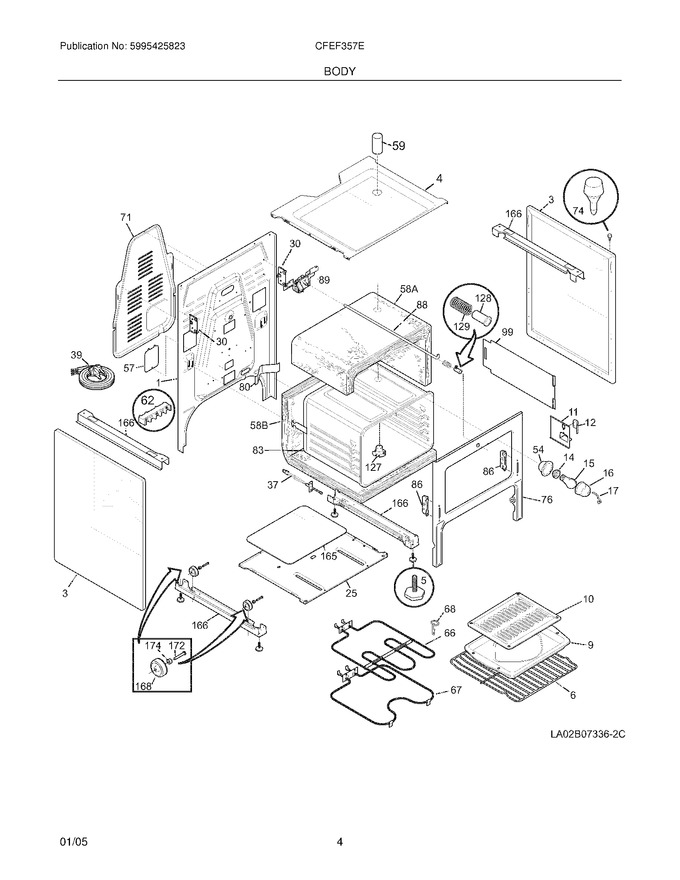

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318108102		Panel,main Back		Appelez-nous	-
3	318025612		Panel		Appelez-nous	-
4	318073804		Burner Box,insul Cover		Appelez-nous	-
5	318175510		Screw-levelling   (Replaces: 318175503)			Immediately	$ 24.26
6	318025314		Rack,oven   (Replaces: 318025308)			Immediately	$ 148.70
9	5303317977		Pan,broiler		Appelez-nous	-
10	5303317976		Insert,broiler Pan		Appelez-nous	-
11	318086100		Bracket-light Switch		Appelez-nous	-
12	318089801		Switch,door,oven Light				$ 77.03
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,oven Light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Cover,oven Light ,glass   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
25	318108702		Shield,heat,lower		Appelez-nous	-
30	318110800		Bracket-hinge,main Top ,(2)		Appelez-nous	-
39	318113107		Cord,electric		Appelez-nous	-
54	318222400		Housing,oven Light				$ 58.22
57	318036501		Cover,access		Appelez-nous	-
59	318072547		Tube,vent ,oven		Appelez-nous	-
62	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
62	5303935061		Terminal Block Kit		Appelez-nous	-
66	318255605		Element,broil ,2750w   (Replaces: 318255600)			Immediately	$ 192.78
68	5304403015		Support,element Hanger				$ 35.04
71	318086601		Cover,wire		Appelez-nous	-
74	318141910		Bumper,bodyside				$ 3.68
76	318108500		Frame,front,wheels Incl		Appelez-nous	-
80	5303324473		Bracket,oven Mounting		Appelez-nous	-
83	318109411		Liner, Oven		Appelez-nous	-
86	5303310524		Receptacle,hinge		Appelez-nous	-
88	318118902		Rod-latch				$ 8.34
89	318120711		Switch				$ 87.68
99	318126101		Deflector,heat ,side		Appelez-nous	-
127	318317100		Adapter,vent Tube ,with Converter   (Replaces: 5303310542)				$ 75.13
128	5303311163		Bushing		Appelez-nous	-
129	5303311164		Spring				$ 18.95
165	318003100		Plate,heat Shield		Appelez-nous	-
166	318111000		Bracket,base Support		Appelez-nous	-
168	08011155		Roller				$ 6.88
172	08011131		Rivet,roller Shaft ,0.250 X 1.500		Appelez-nous	-
174	5303324511		Spacer, Roller		Appelez-nous	-
58A	318285002		Insulation,oven Wrapper				$ 72.92
58B	318285012		Insulation,oven Back		Appelez-nous	-
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F67	318255006		Element,bake ,3000w   (Replaces: 318255000)			Immediately	$ 185.14
F89	318095957		Motor,latch Assy ,w/brkt & Switch   (Replaces: 318095937)			Immediately	$ 127.75
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 0.500 ,chrome ,(3)				$ 15.17
NI	5303307980		Screw,8-32 X 0.437			Immediately	$ 14.18
