SELECT A DIAGRAM

01 - Cover

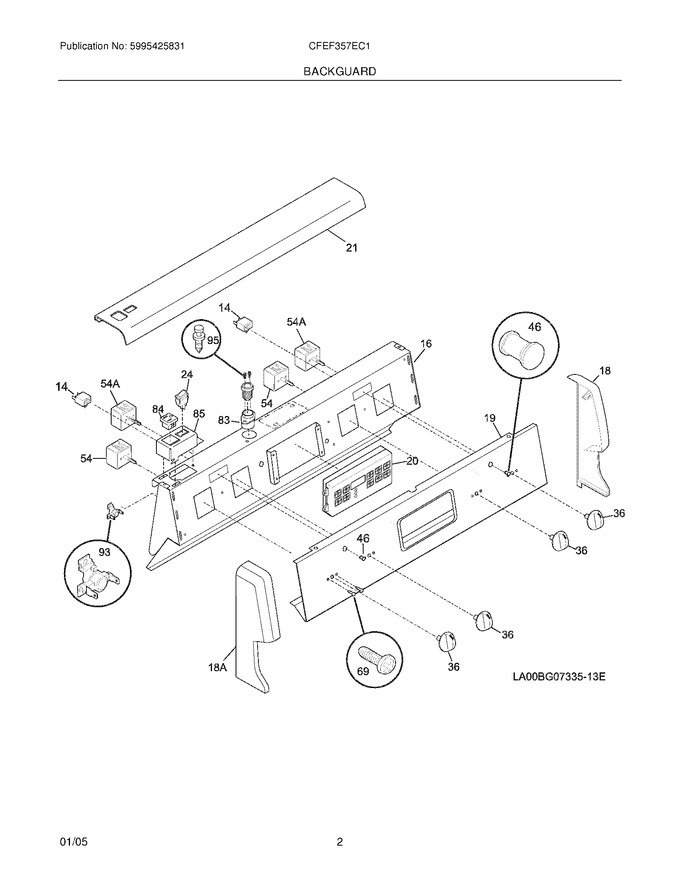

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303323991		Lamp,indicator				$ 26.25
16	318116361		Plate		Appelez-nous	-
18	318118804		Rh End Cap, Blk		Appelez-nous	-
19	318182849		Panel		Appelez-nous	-
20	316220805		Overlay   (Replaces: 318214502)				$ 49.40
21	318190023		Trim,canopy,black		Appelez-nous	-
36	318197621		Knob				$ 4.73
46	318044511		Lens-indicator Light   (Replaces: 318044510)			Immediately	$ 25.66
69	5303288565		Screw,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
85	318171710		Support,outlet/switch		Appelez-nous	-
95	5303324521		Clip,fuse Holder Mtg		Appelez-nous	-
18A	318118805		Lh End Cap, Blk		Appelez-nous	-
F20	318185403		Clock/timer				$ 432.25
F24	318037515		Switch,rocker,black,flourescen				$ 60.96
F54	318293810		Switch,surface Unit ,small   (Replaces: 318220060)			Immediately	$ 100.17
F54	318293811		Switch,surface Unit ,large   (Replaces: 318220061)			Immediately	$ 88.67
F83	318115601		Fuse,15 Amp ,w/fuse Holder				$ 33.86
F84	318146822		Outlet-electrical,miniature		Appelez-nous	-
F93	318003608		Thermostat,safety ,backguard				$ 1.42
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 0.500 ,chrome ,(3)				$ 15.17

    View Diagram in Separate Window       Print Part List
