SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer

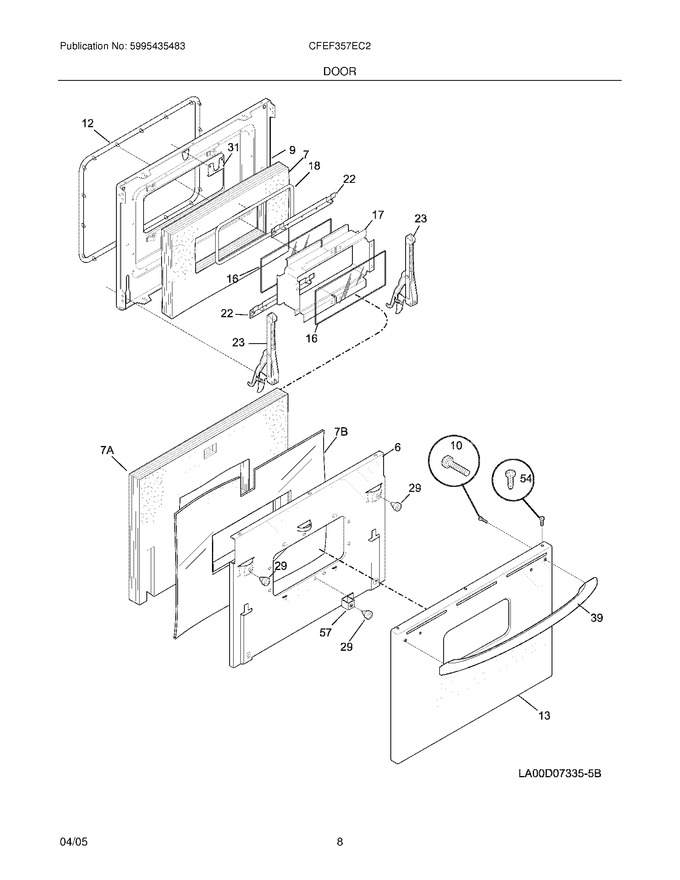

09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318057031		Shield,insullation ,black ,door		Appelez-nous	-
7	318133706		Insulation,oven Door		Appelez-nous	-
9	318157013		Liner,door				$ 291.59
10	5304417411		Screw,handle Mtg. ,10-12 X 1				$ 7.82
12	318053103		Gasket,oven Door Seal   (Replaces: 318253002)			Immediately	$ 150.03
13	318187971		Stainless Panel,oven Door ,w/glass		Appelez-nous	-
16	5303310533		Glass,oven Door ,6.50 X 15.50 ,inner ,heat Barrier				$ 220.55
17	318139000		Spacer,oven Door Glass ,inner Frame		Appelez-nous	-
18	318293500		Gasket,door Glass Seal				$ 31.61
22	5303310511		Bar,glass Retainer		Appelez-nous	-
23	5303310828		Hinge-oven Door, (2)		Appelez-nous	-
29	318147410		Bumper,base		Appelez-nous	-
31	5303310536		Latch,oven Door				$ 30.66
39	316270200		Handle,door ,black				$ 136.40
54	5303300265		Screw,8-18 X 0.500 ,chrome ,(3)				$ 15.17
57	318172902		Stiffener Glass				$ 1.47
7A	318133707		Insulation,oven Door ,cavity		Appelez-nous	-
7B	5304400472		Insulation,oven Door		Appelez-nous	-
NI	5303307980		Screw,8-32 X 0.437			Immediately	$ 14.18
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
