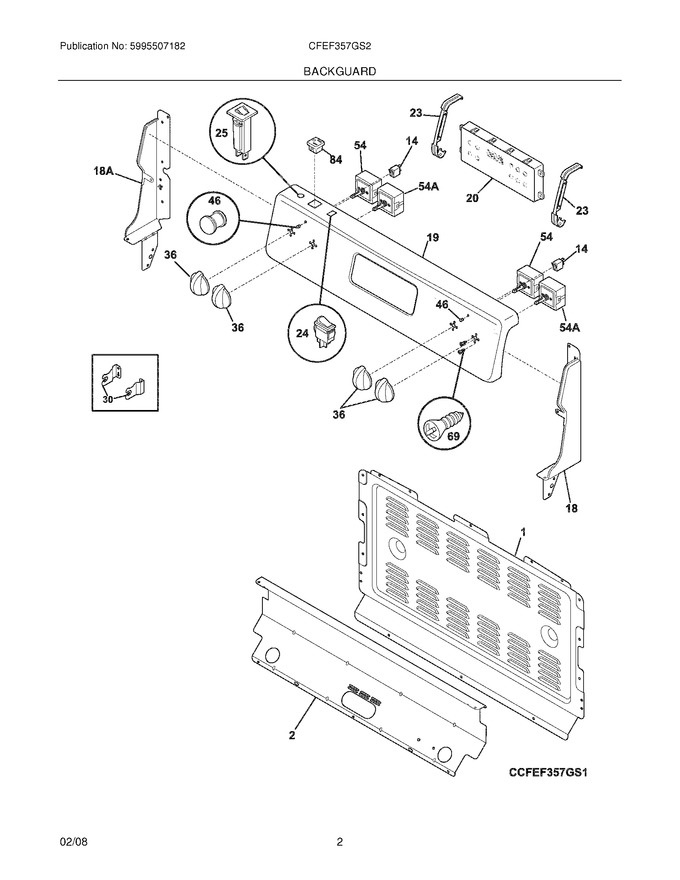

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318314100		Panel,cover ,upper				$ 60.32
2	318318701		Shield,inner ,white		Appelez-nous	-
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
18	318311902		End Cap,backsplash ,white ,rh				$ 34.49
19	318320212		Panel,control ,white				$ 68.25
23	316441600		Bracket-clock Mtg,black				$ 20.48
25	318324200		Breaker,white ,(2)				$ 18.01
30	318316900		Bracket,cooktop Mtg ,(2)		Appelez-nous	-
36	318197620		Knob,control ,white		Appelez-nous	-
46	318228310		Lens,indicator Light ,(2)			Immediately	$ 22.91
69	5303288565		Screw, 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
84	318146830		Outlet,electrical ,white ,combined		Appelez-nous	-
18A	318311903		End Cap,backsplash ,white ,lh				$ 34.07
F20	318185727		Clock/timer,electronic ,es300 ,white ,w/overlay   (Replaces: 318185723)				$ 351.40
F24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
F54	318293810		Switch,surface Element ,small			Immediately	$ 100.17
F54A	318293811		Switch,surface Element ,large			Immediately	$ 88.67
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	316419137		Overlay,control ,white   (Replaces: 318214512)			Immediately	$ 31.34
