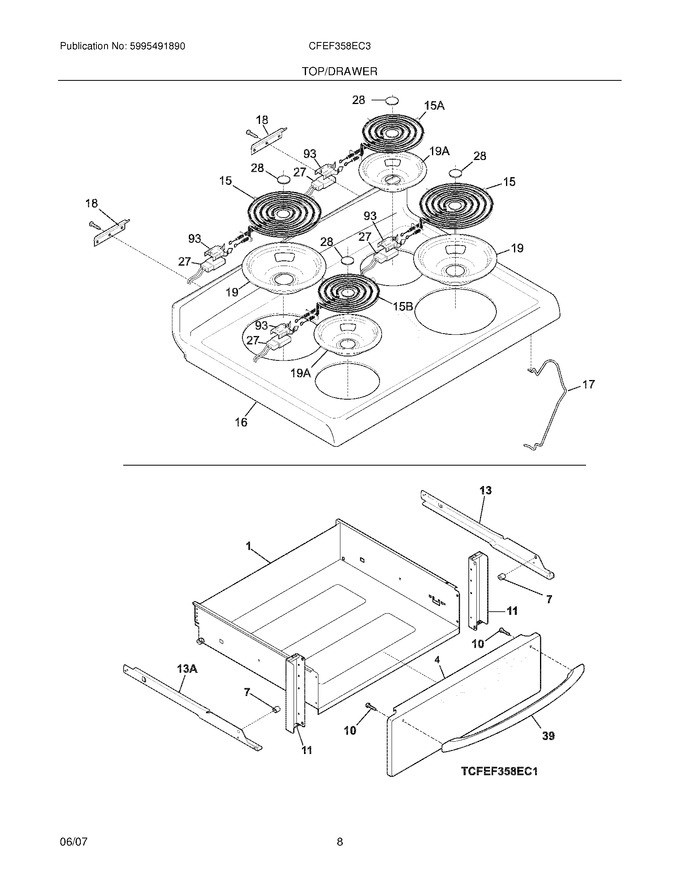

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer   (Replaces: 318107105)			Immediately	$ 143.39
4	318311700		Panel,drawer ,stainless ,front		Appelez-nous	-
7	318332200		Roller,nylon		Appelez-nous	-
10	5304452028		Screw,handle Mtg ,10-14 X 1/2 ,(2)				$ 11.02
11	318311502		Bracket,drawer Panel ,(2)				$ 9.56
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
16	318065783		Panel,main Top ,black				$ 196.25
17	318119100		Rod-maintop Support,(2)				$ 6.67
18	318074410		Hinge,main Top Panel ,(2)				$ 1.47
19	A316222301		Pan,surface Element ,large ,black   (Replaces: 318067050)			Immediately	$ 12.53
28	3017801		Medallion, Stainless Steel, Surf Elem		Appelez-nous	-
28	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
39	316270200		Handle,door ,black				$ 136.40
93	318366410		Support,terminal Block ,(4)				$ 13.47
13A	318018101		Channel-drawer,lh				$ 63.11
19A	A316222201		Pan,surface Element ,small ,black   (Replaces: 318067040)			Immediately	$ 14.64
F15	316442303		Element,surface ,large/8 Inch ,2400w ,medallion Incl   (Replaces: 5304437242)			Immediately	$ 207.45
F15A	318372211		Element,surface ,6`` ,small   (Replaces: 08067762)			Immediately	$ 45.14
F15B	316439802		Element,surface ,small/6 Inch ,1250w ,medallion Incl   (Replaces: 5304437241)			Immediately	$ 192.78
F27	318368600		Terminal Block,surface Element ,25`` ,white Leads		Appelez-nous	-
F27	318368601		Terminal Block,surface Element ,28`` ,black Leads		Appelez-nous	-
NI	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
