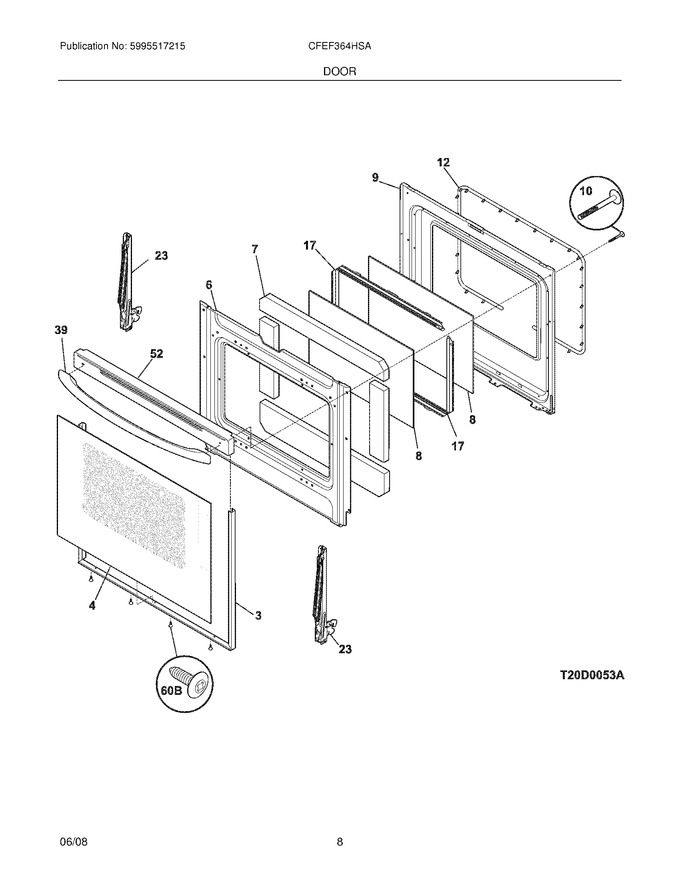

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935318		Trim Kit-door,3 Sided ,white ,w/tape   (Replaces: 5303935243)			Immediately	$ 83.64
4	316406403		Glass,oven Door ,white ,outer				$ 176.70
6	316406308		Shield,wool				$ 100.17
7	316405601		Insulation,oven Door				$ 84.68
8	316427701		Glass,oven Door ,inner ,(2)				$ 103.74
9	316423703		Liner,oven Door				$ 191.05
10	316433300		Screw,10-14 X 2.125`` ,handle Mtg.			Immediately	$ 27.50
12	316405000		Seal,oven Door			Immediately	$ 179.17
17	316408803		Spacer,door Glass ,(2)				$ 32.28
23	316456307		Hinge,oven Door ,purple Titan ,(2)				$ 59.96
39	316270201		Handle,door ,white			Immediately	$ 128.29
52	316575500		Cap,door Trim ,white   (Replaces: 316468400)			Immediately	$ 122.09
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316433603		Label,anti-tip				$ 3.55
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
