SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door

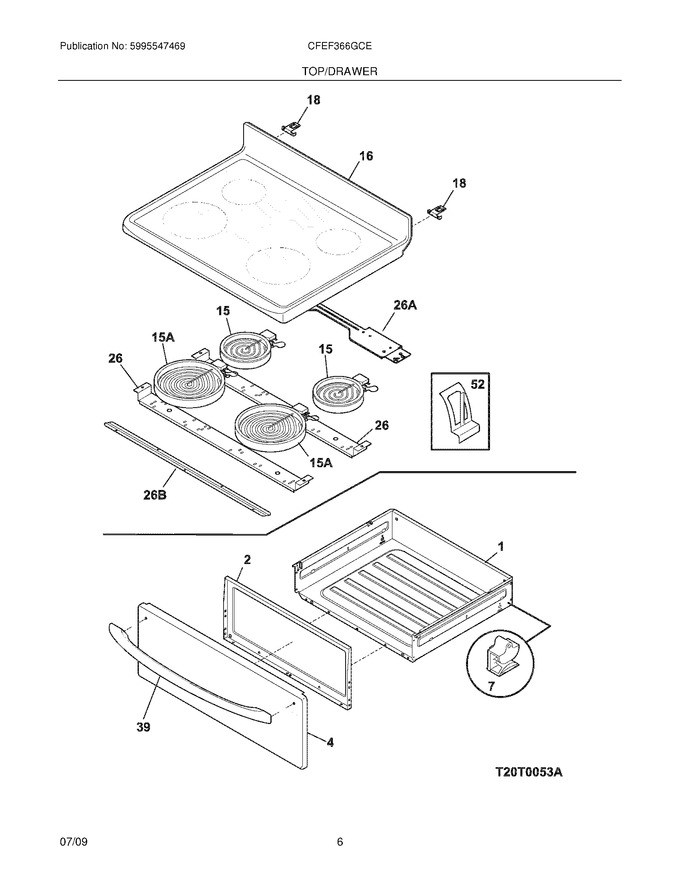

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer,utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304527989		Liner,drawer   (Replaces: 316403300)				$ 28.83
4	316403506		Panel,drawer Front ,black				$ 65.21
7	316407402		Glide,drawer ,rear   (Replaces: 316407400)			Immediately	$ 9.86
16	316456238		Main Top,smooth Top ,black				$ 487.22
18	316436600		Hinge Bracket,maintop ,(2)				$ 45.36
26	316427600		Channel,element Support ,(2)		Appelez-nous	-
39	316270200		Handle,door ,black				$ 136.40
52	316461700		Clip,element Mtg				$ 12.05
26A	316498200		Bracket-support,chassis ,aluminum				$ 52.33
26B	316214202		Bracket,chassis Support ,front				$ 25.41
F15	318178110		Element,surface ,6`` ,1200w ,(2) ,radiant   (Replaces: 318198846)			Immediately	$ 122.86
F15A	316135401		Element,surface ,9`` ,2500w ,radiant   (Replaces: 316224201)			Immediately	$ 80.96
FNI	316510679		Harness-wiring,surface				$ 103.01
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
NI	316437500		Screw,handle Mtg. ,10 14 X .4 Trus ,(2)				$ 13.39
NI	316468100		Cleaner,smoothtop ,w/sponge				$ 4.88
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
