SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259220		Back,main				$ 88.31
3	318299801		Panel,body Side ,white ,(2)		Appelez-nous	-
5	318175510		Screw,leveling   (Replaces: 318175508)			Immediately	$ 24.26
6	318345207		Rack,oven				$ 69.20
9	316081900		Pan,broileroptional Access0ry				$ 65.89
10	316082000		Insert,broiler Panoptional Accessory				$ 68.85
11	318382700		Latch,door				$ 86.31
12	316445501		Switch,oven Light ,door Frame				$ 90.01
13	318384500		Bracket,lock Motor		Appelez-nous	-
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 08011086)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
29	318147430		Bumper,(2)   (Replaces: 318147411)				$ 18.95
41	5303310526		Cover-hinge Cutout				$ 83.00
54	318222400		Housing,oven Light				$ 58.22
59	318072574		Duct,oven Vent				$ 37.07
62	5303935061		Terminal Block Kit		Appelez-nous	-
68	5304403015		Support,hanger ,(2) ,broil Element				$ 35.04
70	318302710		Shield,insulation ,right ,(2)				$ 26.30
71	318300900		Panel,cover				$ 41.95
74	318141910		Bumper,bodyside				$ 3.68
76	318056217		Front,oven				$ 143.06
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258707		Shield,insulation ,lower				$ 108.24
83	318261403		Liner,oven Assy		Appelez-nous	-
86	318342400		Receptacle,hinge				$ 43.24
88	318376511		Rod,latch		Appelez-nous	-
127	318317100		Adapter Assembly,vent Tube ,w/converter				$ 75.13
143	318172904		Support,wire		Appelez-nous	-
152	318338500		Bracket,lateral Panel ,(4)				$ 8.14
165	318322600		Plate,shield		Appelez-nous	-
166	318298410		Bracket,base Support ,(2)				$ 75.83
177	318053810		Gasket,vent				$ 29.40
178	318301300		Bracket,vent Tube		Appelez-nous	-
200	318318400		Frame,drawer ,black ,front ,w/rollers				$ 66.20
201	318311610		Frame,drawer ,rear				$ 50.70
242	318303105		Trim,center ,black				$ 44.10
58A	318285055		Insulation,oven Wrapper		Appelez-nous	-
58B	318285083		Insulation,rear & Bottom ,oven Wrapper				$ 35.91
70A	318302711		Shield,insulation ,left ,(2)				$ 26.51
F166	318298400		Bracket,base Support ,(2)				$ 59.48
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F39	318113112		Cord,electric				$ 73.00
F66	318255605		Element,broil ,2750w   (Replaces: 318255600)			Immediately	$ 192.78
F67	318255006		Element,bake ,3000w   (Replaces: 318255002)			Immediately	$ 185.14
F89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 52.34
FNI	318340979		Harness,wiring ,main		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2,black				$ 14.41
NI	318340983		Harness,wiring ,door Switch		Appelez-nous	-
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303325978		Screw,shoulder Head ,8-18 X 1/2		Appelez-nous	-
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34

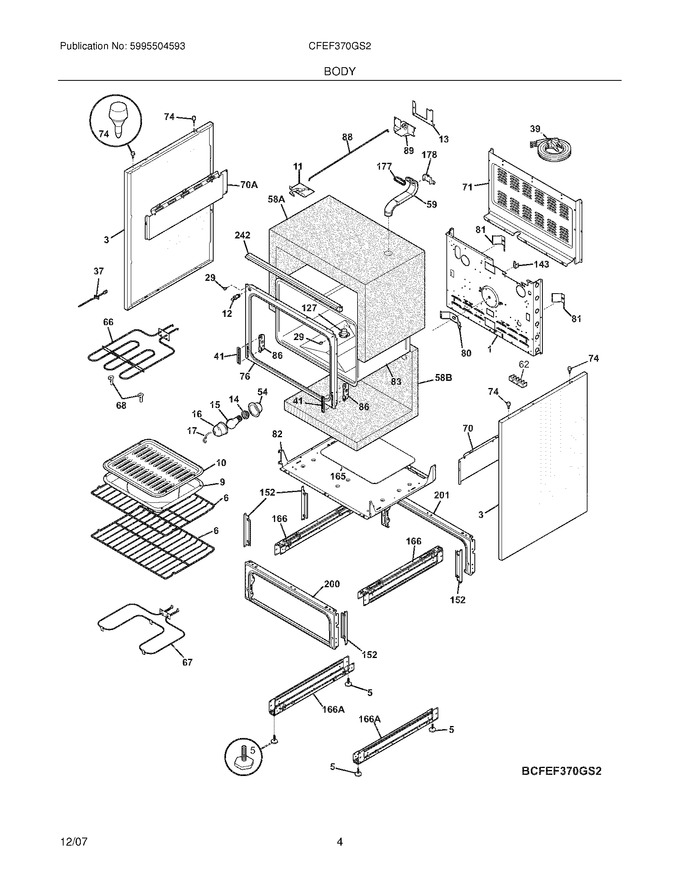

    View Diagram in Separate Window       Print Part List
