SELECT A DIAGRAM
01 - Cover
03 - Backguard
05 - Body

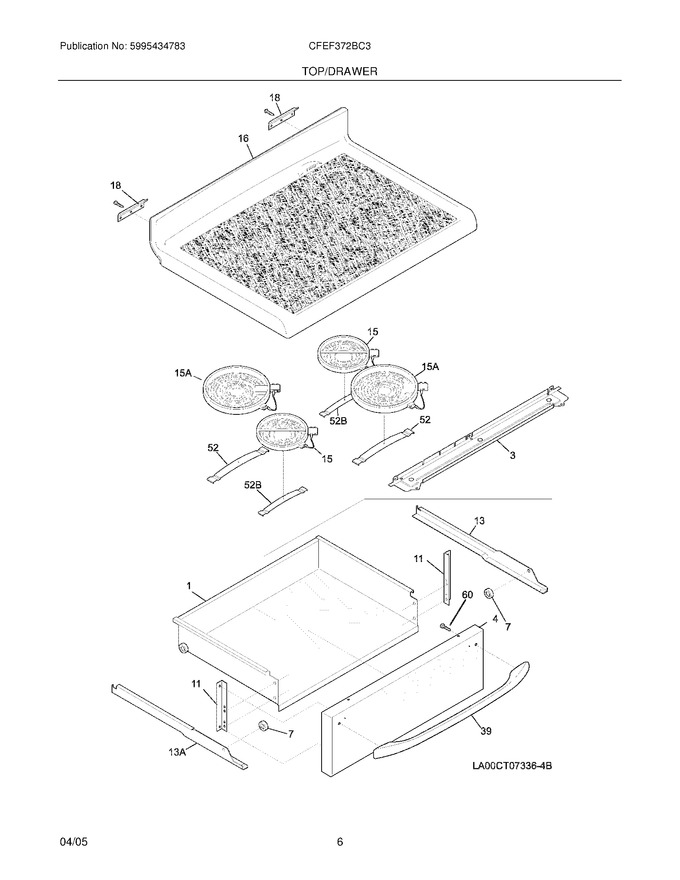

07 - Top/drawer
09 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304505701 | Drawer (Replaces: 318107104) |
|
Immediately | $ 143.39 | ||||
| 3 | 318144323 | Support,main Top |
|
- | |||||
| 4 | 318136204 | Panel,drawer ,stainless ,front |
|
- | |||||
| 7 | 318014800 | Spacer |
|
$ 16.59 | |||||
| 11 | 318107500 | Bracket,drawer Support ,(2) |
|
$ 21.85 | |||||
| 13 | 318018100 | Channel-drawer,rh |
|
Immediately | $ 30.01 | ||||
| 16 | 318154604 | Panel,main Top ,glass ,black ,assembly |
|
- | |||||
| 18 | 318074410 | Hinge,main Top Panel ,(2) |
|
$ 1.47 | |||||
| 39 | 316270200 | Handle,door ,black |
|
$ 136.40 | |||||
| 52 | 318122007 | Spring,element Mtg ,large |
|
$ 53.45 | |||||
| 60 | 5303311174 | Screw, 10-24 X 3/8 |
|
Immediately | $ 14.89 | ||||
| 13A | 318018101 | Channel-drawer,lh |
|
$ 63.11 | |||||
| 52B | 318122006 | Spring,element Mtg ,small |
|
$ 66.25 | |||||
| F15 | 318198817 | Element,surface ,small/6`` ,1200 W (Replaces: 318198813) |
|
Immediately | $ 192.78 | ||||
| F15A | 903118-9010 | Element,surface ,large/8`` ,2100 W (Replaces: 318198814) |
|
Immediately | $ 236.18 | ||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 |
