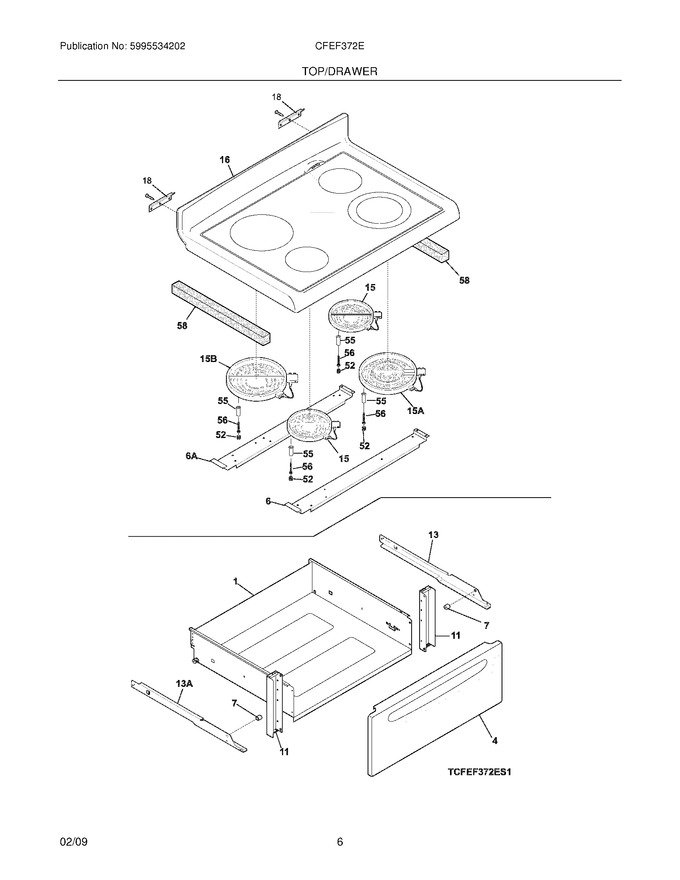

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer   (Replaces: 318107105)			Immediately	$ 143.39
4	318303006		Panel,drawer ,white ,front		Appelez-nous	-
6	318180715		Bracket,element				$ 42.74
7	318332200		Roller,nylon		Appelez-nous	-
11	318311502		Bracket,drawer Panel ,(2)				$ 9.56
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
16	318154580		Maintop,frame/glass ,white/black ,assembly				$ 424.99
18	318074410		Hinge,main Top Panel ,(2)				$ 1.47
52	5303317177		Spring-element Mtg				$ 12.74
55	5303317178		Spacer-element				$ 2.42
56	5303317179		Screw-element, 6 X 3/4				$ 2.42
58	318285098		Insulation,1.25`` Thick ,19 X 2				$ 4.13
13A	318018101		Channel-drawer,lh				$ 63.11
6A	318180713		Bracket,element		Appelez-nous	-
F15	318178110		Element,surface ,small/6`` ,1200 W   (Replaces: 318198846)			Immediately	$ 122.86
F15A	316555800		Element,surface ,6/9 ,1200/2500w ,dual Radiant   (Replaces: 318198932)			Immediately	$ 138.90
F15B	318198834		Element,surface ,large/8`` ,2200 W				$ 205.36
FNI	318199380		Harness,wiring ,cooktop				$ 93.82
NI	318163601		Cleaner-cooktop				$ 0.42
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	318231846		Harness,wiring ,limiter				$ 22.73
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
