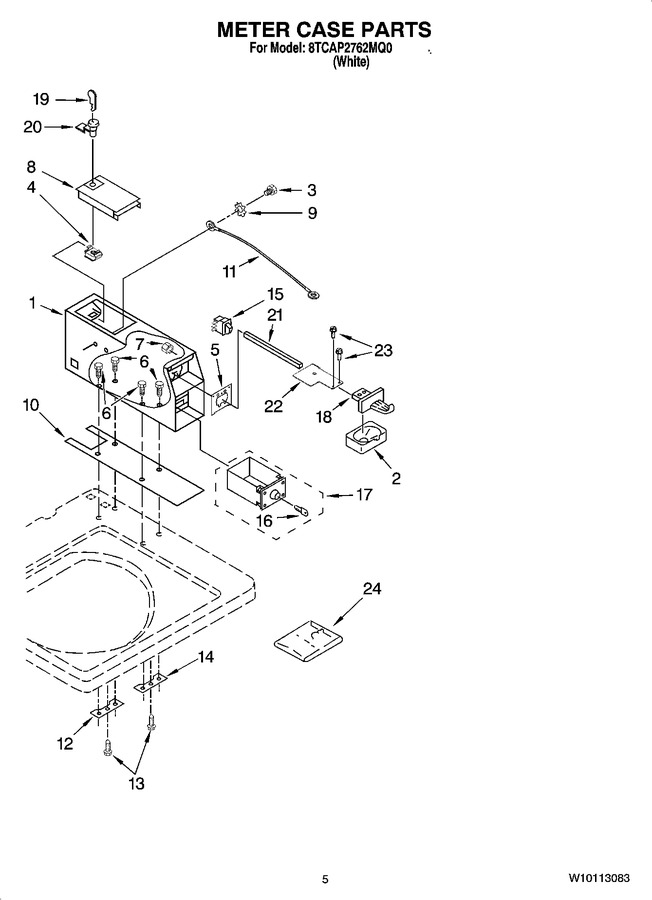

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10461200 | Meter Case (Replaces: 3406994) |
|
Immediately | $ 344.90 | ||||
| 2 | WP385421 | Coin Funnel (Replaces: 385421) |
|
Immediately | $ 66.78 | ||||
| 3 | 339805 | Screw, 10-32 X 3/16 |
|
$ 12.05 | |||||
| 4 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 7.33 | |||||
| 5 | 279950 | Plate, Adapter (includes Item 2) (Replaces: 3954761) |
|
Immediately | $ 26.00 | ||||
| 6 | W11715721 | Bolt, Meter Case (5/16-24 X 1 (3)) (Replaces: 3349065) |
|
$ 6.41 | |||||
| 6 | 3353994 | Bolt, Meter Case (5/16-18 X 2.5 (1)) |
|
- | |||||
| 7 | WP3400029 | Nut (Replaces: 3400029) |
|
Immediately | $ 6.98 | ||||
| 8 | W11283272 | Door, Service (Replaces: 3351136) |
|
$ 95.29 | |||||
| 9 | W11170663 | Washer (Replaces: 3400900) |
|
$ 3.89 | |||||
| 10 | WP3954812 | Cushion, Case (Replaces: 3954812) |
|
$ 27.99 | |||||
| 11 | 340025 | Wire, Ground |
|
- | |||||
| 12 | 3353813 | Plate, Mounting |
|
$ 47.08 | |||||
| 13 | W10841059 | Screw, 10-16 X 3/4 (Replaces: 98445) |
|
- | |||||
| 14 | 3347825 | Plate, Mounting |
|
- | |||||
| 15 | 3402784 | Switch, Service Diagnostic |
|
$ 8.09 | |||||
| 17 | W11190039 | Money Box (includes Item 16) (Replaces: 8316525) |
|
Immediately | $ 160.25 | ||||
| 18 | W11312584 | Insert, Blank (Replaces: 8316264) |
|
$ 28.26 | |||||
| 18 | 8316265 | Insert, 25 |
|
- | |||||
| 18 | W11126319 | Coin Chute (Replaces: 8316520) |
|
Immediately | $ 279.80 | ||||
| 19 | 4396669 | Key, Service Door (Replaces: 358288) |
|
Immediately | $ 10.64 | ||||
| 20 | W11315637 | Security Lock & Cam Assembly (Replaces: 8316526) |
|
Immediately | $ 36.42 | ||||
| 21 | WP8576635 | Bolt, Coin Chute (Replaces: 8318517) |
|
Immediately | $ 67.13 | ||||
| 22 | W11318367 | Extension (Replaces: 8316522) |
|
Immediately | $ 38.20 | ||||
| 23 | 3400086 | Screw, 10-32 X 3/8 |
|
$ 12.77 | |||||
| 24 | 8316524 | Kit, Decal |
|
- |
