SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Gas Controls


05 - Oven/base


06 - Supplimental Information


07 - Top Assembly


08 - Wiring Information

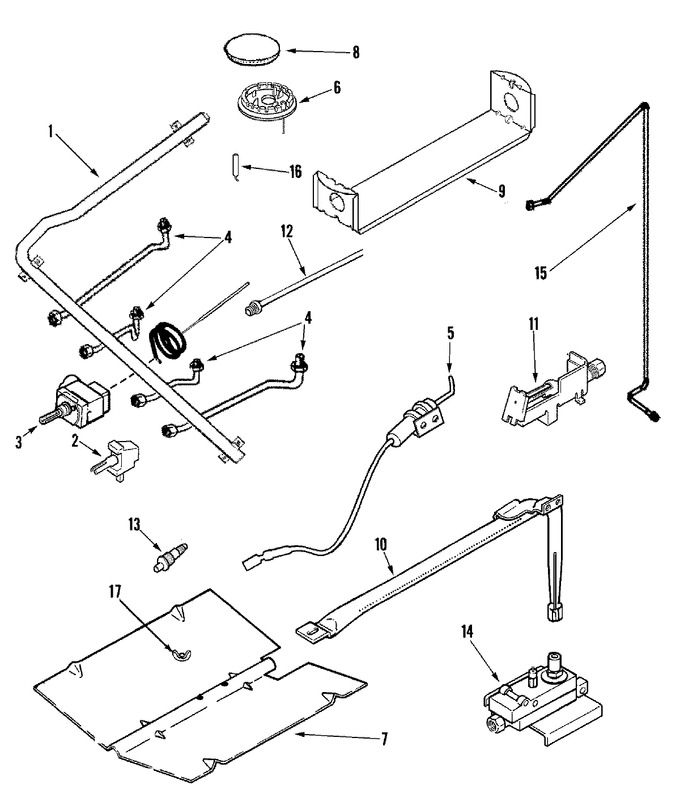

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74002773		Pipe, Manifold	10	Appelez-nous	-
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
2	74002433		Screw, Valve	10	Appelez-nous	-
2	74002532		Valve, Burner	10	Appelez-nous	-
3	7101P010-60		Screw, Control	10	Appelez-nous	-
3	74007567		Thermostat, Gas (match Lite)	10	Appelez-nous	-
4	7103P030-60		Nut, Wing	10			$ 6.37
5	74001232		Igniter, Piezo Assy.	10	Appelez-nous	-
6	74007528		Base, Burner (sd)	10			$ 37.92
6	7101P343-60		Screw	10	Appelez-nous	-
6	74007527		Head, Burner (sd)	10	Appelez-nous	-
7	74002393		Baffle, Oven Burner	10	Appelez-nous	-
8	74007534		Cap, Burner (blk-sd)	10	Appelez-nous	-
9	74007630		Assy., Orifice Fitting (lt)	10	Appelez-nous	-
9	74007629		Assy., Orifice Fitting (rt)	10	Appelez-nous	-
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74002434		Burner, Oven	10			$ 94.06
11	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	10			$ 4.29
11	74007568		Lighter, Pilot Lp	10	Appelez-nous	-
12	74006184		Tubing, Pilot	10	Appelez-nous	-
13	7432P078-60		Button, Piezo Ignitor	10	Appelez-nous	-
14	74007569		Valve, Oven (bu)	10	Appelez-nous	-
14	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
15	74006185		Tubing, Oven Valve	10	Appelez-nous	-
16	WP8523793		Ignitor, Sourdillion Assy.   (Replaces: 74007473)	10		Immediately	$ 36.15

    View Diagram in Separate Window       Print Part List
