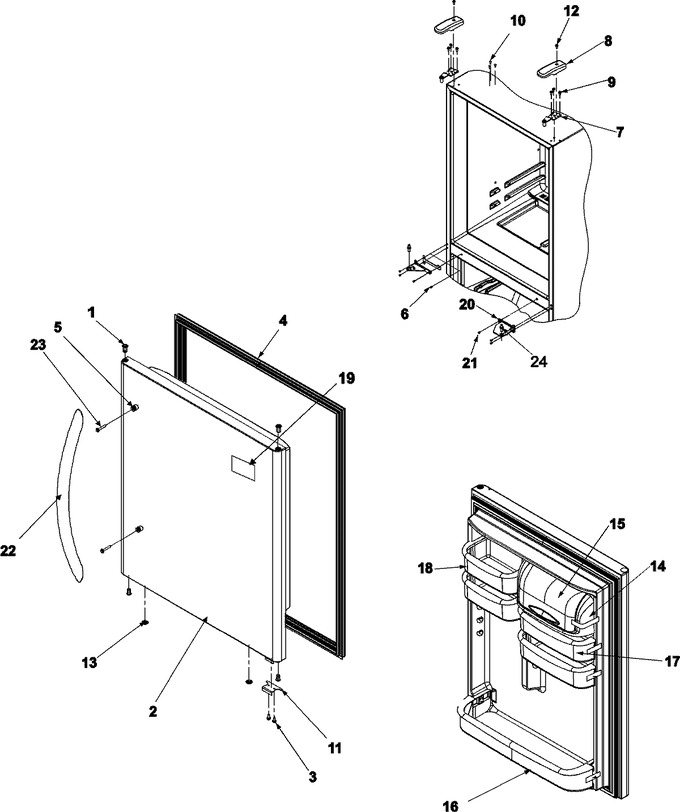

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67004978 | Bushing, Door (blk) | 10 |
|
Immediately | $ 19.89 | |||
| 2 | 67006961 | Door Assy., Ref. Foam (stnls) | 10 |
|
- | ||||
| 3 | WP98165 | Screw, Sm (Replaces: 67006287) | 10 |
|
$ 7.71 | ||||
| 4 | WPW10436245 | Gasket, Ref Door (blk) (Replaces: 67003549) | 10 |
|
Immediately | $ 326.12 | |||
| 5 | WP67006113 | Mount, Handle (Replaces: 67006113) | 10 |
|
Immediately | $ 11.30 | |||
| 6 | WP489349 | Screw, Tf Hex/washer Hd (Replaces: 67005822) | 10 |
|
Immediately | $ 7.59 | |||
| 7 | WP12566606ED | Hinge, Top (blk) (Replaces: 67001011) | 10 |
|
Immediately | $ 42.42 | |||
| 8 | 67001012 | Cover, Top Hinge (blk) | 10 |
|
$ 44.74 | ||||
| 9 | WP489349 | Screw (Replaces: 67006303) | 10 |
|
Immediately | $ 7.59 | |||
| 10 | WP12246608 | Plug, Top Hinge Button (blk) (Replaces: M0310731) | 10 |
|
Immediately | $ 7.34 | |||
| 11 | W11708403 | Stop, Door (blk) (Replaces: 67003780) | 10 |
|
$ 13.28 | ||||
| 12 | WP8281196 | Screw (Replaces: 67006521) | 10 |
|
Immediately | $ 6.80 | |||
| 13 | 67004838 | Plug, Vent (blk) | 10 |
|
$ 10.09 | ||||
| 14 | WP67001279 | Tray, Dairy (Replaces: 67001279) | 10 |
|
Immediately | $ 79.21 | |||
| 15 | WP12744905 | Dairy Assy (Replaces: 67003819) | 10 |
|
$ 102.59 | ||||
| 16 | 67001139 | Retainer, Door (Replaces: 67001296) | 10 |
|
Immediately | $ 94.31 | |||
| 17 | WP67001021 | Bucket, Med Ref Door (Replaces: 67001021) | 10 |
|
$ 76.46 | ||||
| 18 | 67001141 | Bucket, Small Ref Dr | 10 |
|
Immediately | $ 71.02 | |||
| 19 | Y12528501 | Nameplate (amana Plus) | 10 |
|
Immediately | $ 56.47 | |||
| 20 | WP12607104ED | Hinge, Center (blk) (Replaces: 67007043) | 10 |
|
$ 150.62 | ||||
| 21 | WP67003639 | Closure, Door (blk) (Replaces: 67003639) | 10 |
|
Immediately | $ 81.29 | |||
| 21 | W11573362 | Screw (Replaces: 67006380) | 10 |
|
$ 13.25 | ||||
| 22 | 67006719 | Handle, Door (stnls) | 10 |
|
- | ||||
| 23 | WP3387230 | Screw, Mount (Replaces: 67002935) | 10 |
|
Immediately | $ 7.86 | |||
| 24 | WP67006642 | Pin, Center Hinge (Replaces: 67006642) | 10 |
|
$ 7.90 |
